Description

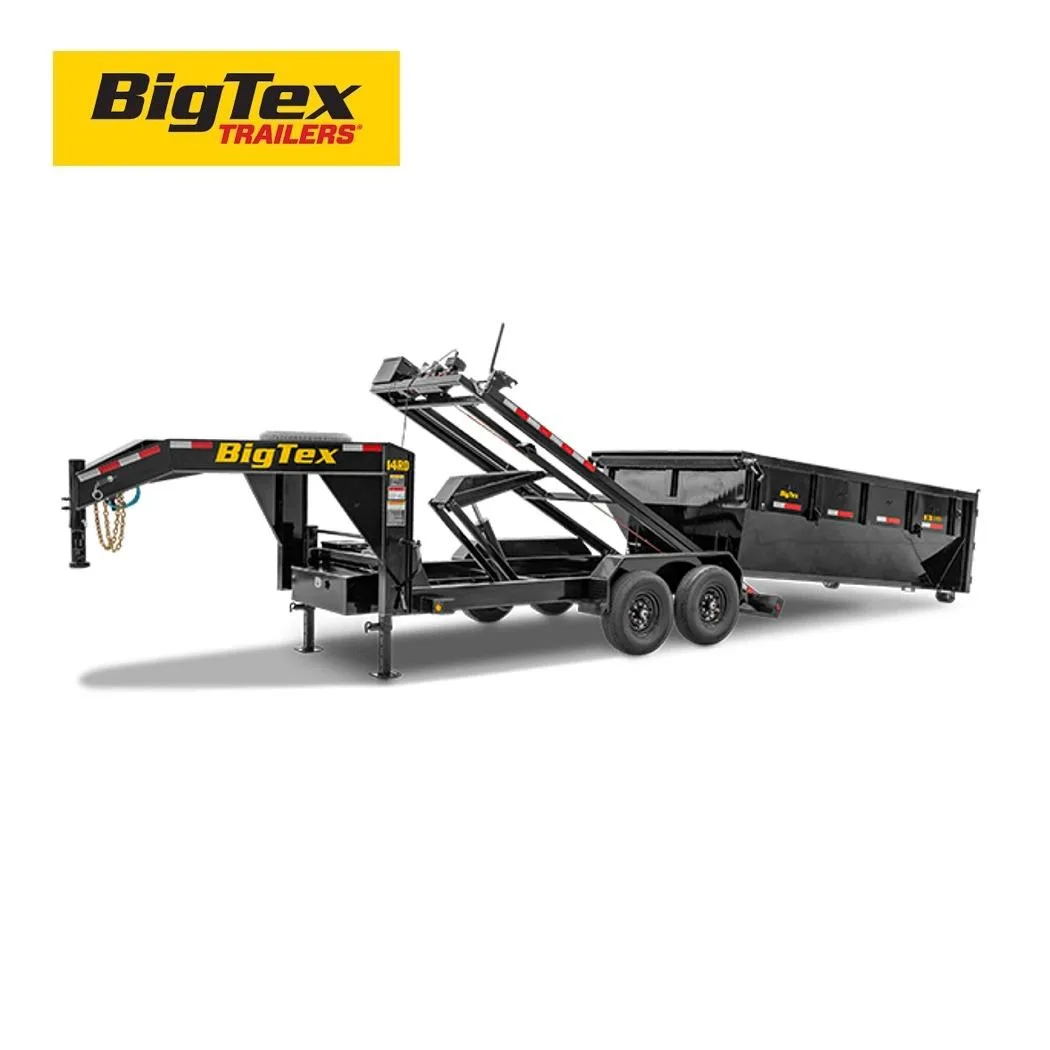

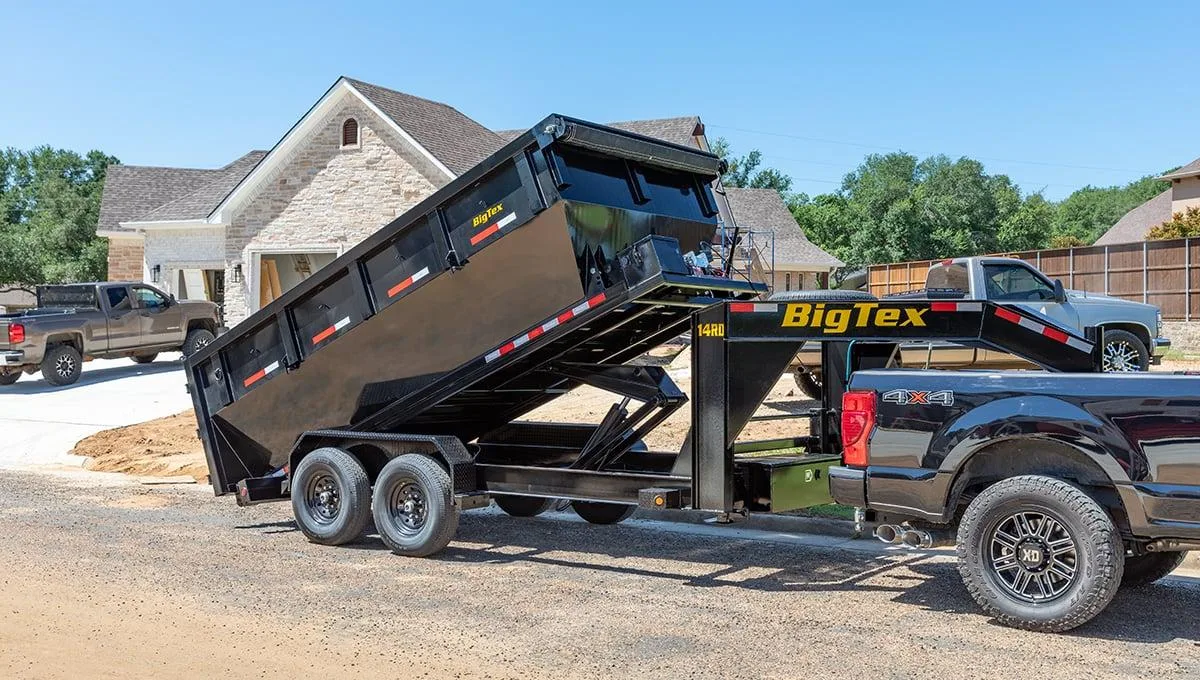

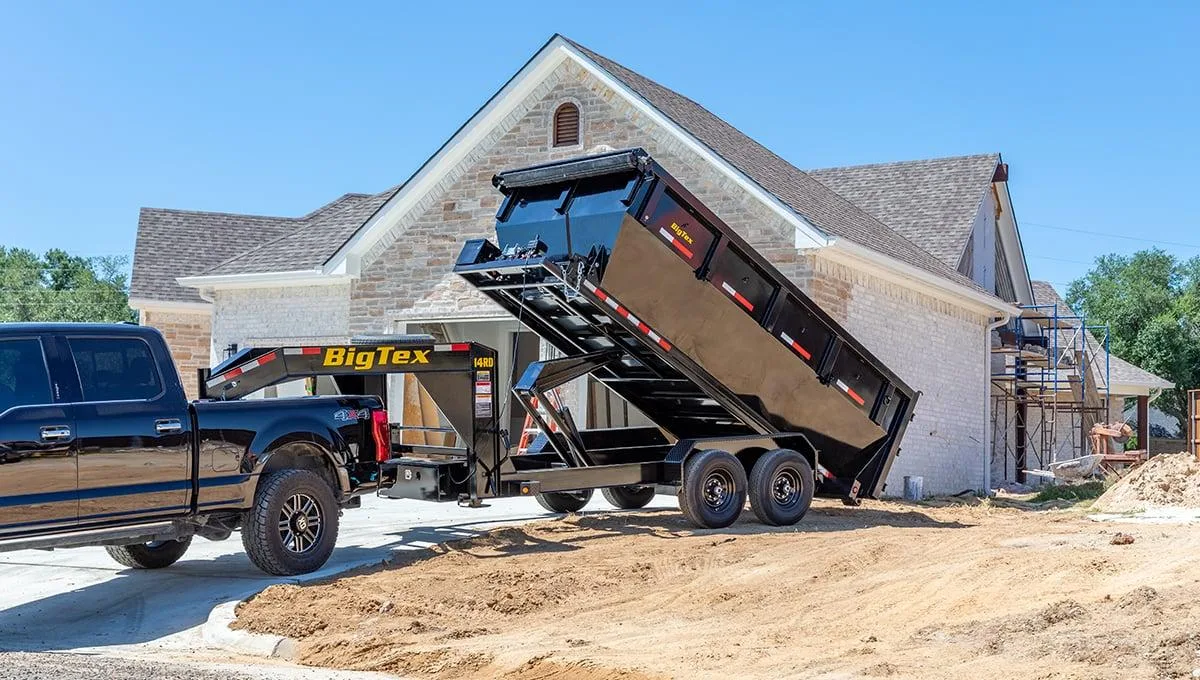

Roll-Off Gooseneck Dump Trailer Gooseneck configured for superior stability and carrying weight, the 14RD Roll-Off Gooseneck Dump Trailer features a 15,900 lbs. G.V.W.R. to meet the demands of the construction, junk removal, and the dumpster rental business. Built to service multiple job sites with a single trailer, it’s designed with professional-grade parts to hold up against the challenges of day-to-day use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the gooseneck configured 14RD gets the job done when the going gets tough.
AVAILABLE SIZES;
(83″) 7×14′
Roll-Off-Dump-Trailer-Brochure
* Prices and product availability are subject to change without notice. “As Low As” Pricing does not include installation, assembly, shipping, freight or any other dealer fees.
Features
STANDARD FEATURE Axles 2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs Brakes Forward Self-Adjusting Electric Brakes on Both Axles Suspension Multi-Leaf Slipper Spring w/ Equalizer Coupler Round Adjustable Pin 2-5/16″ Gooseneck Coupler Safety Chains3/8″ Grade 70 w/ Safety Latch Hook (2 ea) Jack12,000# Drop-Leg Jack (Side Wind) Frame 8″ I-Beam (10#) Cross-Members 3″ Channel on 16″ Centers Floor 10 Gauge Smooth Steel Fenders 9″ x 72″ 14 Ga. Diamond Plate Double Broke Trailer Plug 7-Way RV Lights Recessed, Grommet-Mounted L.E.D. Lighting Wiring Sealed, Modular Cold-Weather Wiring Harness Tires ST235/80 R-16 Load Range E Radial Tires Bolt Pattern 8-Lug Spare Mount Side Spare Tire Mount Spare Tire Paint Type Professional Finish w/ Primer Standard Paint Color Black Tie-Downs (4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable Battery 12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch Charger (2) 5A 110V on Board Battery Charger for Hydraulic System and Winch Gate Barn Doors Power Power Up/Power Down Movement Ram Self-Contained Scissor Sides 48″ Tall (12 Ga) with formed Channel Supports Storage Lockable Pump and Battery Box mounted in Front of Bed TarpFully-Formed Tarp Shroud with Crank Tarp & Rear Tarp Rod Holders Top Rail 4″x 3″ Rectangular Tubing Battery Box Tilt Bed mounted Battery Box for Independently wired Winch Power System \ Rollers Greaseable Rollers Steps & Handles Convenient Side-Step to Access Top Rail Winch Specially Designed High Duty Cycle 15K Winch
