Description

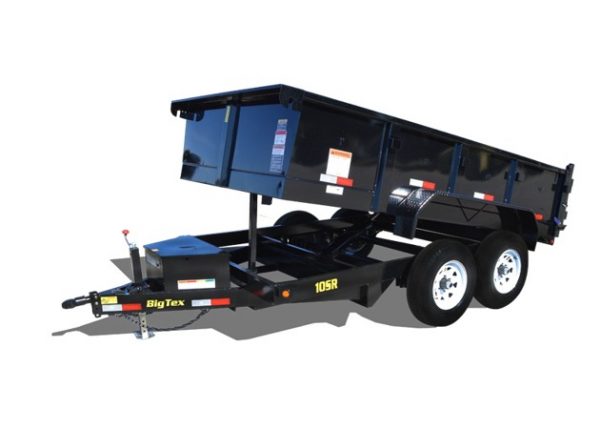

BIG TEX 10SR – 7 ft Wide 10000 LB. GVWR Low Profile
The 10SR from Big Tex Trailers is one of our medium duty dump trailers. This unit is equipped with dual straight ram hydraulic lifting system. This unit comes standard with a lockable pump box, combo three way rear gate, LED lights, and is powdercoated. Great for hauling dirt, gravel, mulch, manure, and many other light duty loads around the home or ranch.
Model(s): 10SR-12
Available Sizes: 7 x 12′
Call or Stop by your local Truck’n America today!
Features
FEATURES
Lockable Pump & Battery Box Mounted in Front of Bed
J-Hooks for Tie Down
Fully Formed Shroud for Tarp
Self Contained Electric/Hydraulic Single Cylinder Lift
45 Degree Dump Angle
Combo Gate
24”, 12 Ga. Sides
10 Ga. Floor
Stake Pockets (Sides)
EZ Lube Hubs
Dexter Brand Axles
(4) 5/8” D-Rings Inside Bed
Nev-R-Adjust Electric Brakes
Cambered Axles
Spare Tire Mount
Diamond Plate Fenders
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Protected Wiring
Complete Break-A-Way System w/Charger
2” Square Tubing Top Rail
Radial Tires
Hoist Comparison
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
Specifications
SPECIFICATIONS
G.V.W.R. 9,990#
G.A.W.R. (Ea. Axle) 5,200#
Coupler 2-5/16” Adjustable Forged
Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)
Jacks 7,000# Top Wind Drop Leg (Bolted On)
Tongue 6” Channel
Frame 6” x 2” Rectangular Tubing
Crossmembers 8” Channel
Bed Crossmembers 3” Channel
Bed Long Sils 3” Channel
Bed Side Rails 6 1/2” Formed Angle
Fenders 9” x 72” Double Square Broke Diamond Plate
Axles Two 5,200# EZ Lube w/Elec. Brakes
Suspension Multi-Leaf Spring w/Equalizer
Tire ST235/80 R-16 Load Range E
Wheel 16″ x 6″; White Spoke 6 Bolt
Floor 10 Gauge Smooth Steel
Lights LED D.O.T. Stop, Tail, Turn, & Clearance
Elec. Plug 7-Way RV
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Model# Weight Description
10SR-12XL 3,160# 83” x 12’ Pro Series Tandem Axle Single Ram Dump
Trailer Weights & Capacities
Length Empty Weight Payload Box Capacity
12’ 3,160# 6,830# 6.1 Cubic Yards
*Weights shown are for base models without options and are estimates only.
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
Popular Options
POPULAR OPTIONS
Category Description Details
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
RAMPS 7’ Slide In Ramps Details
CARGO CONTROL Crank Style Roll Tarp Details
