Call for price
Brand: Big Tex Trailers

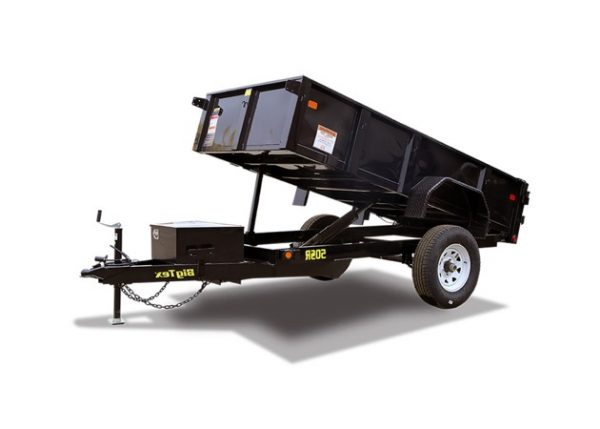

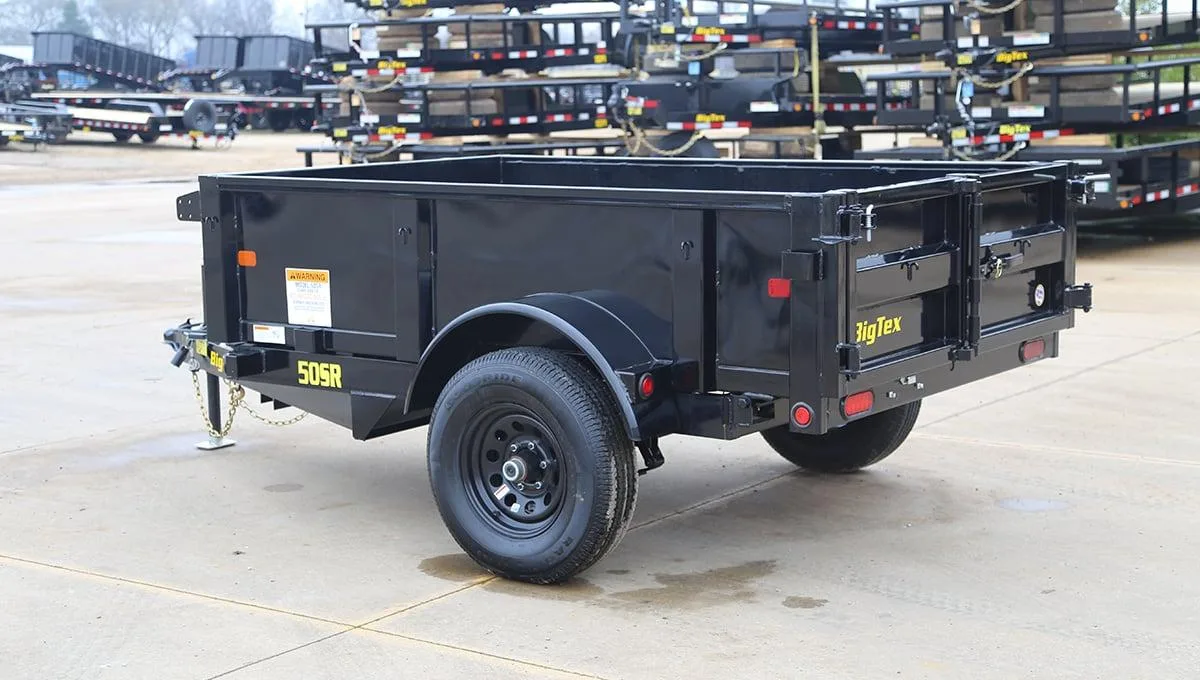

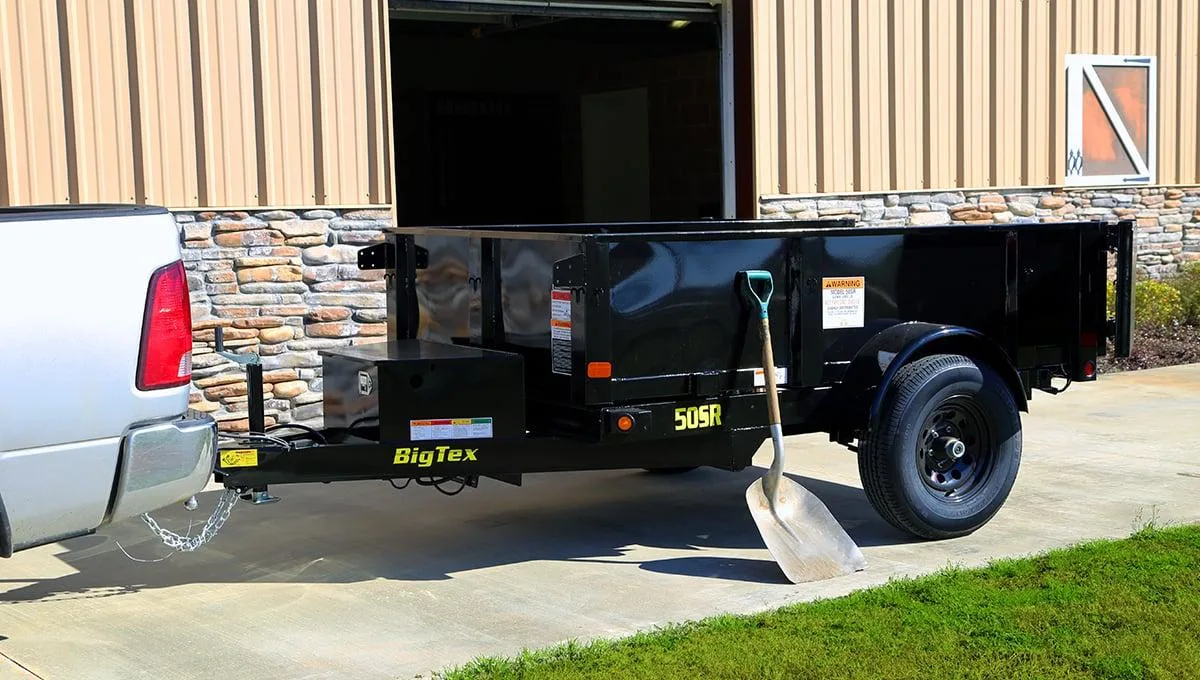

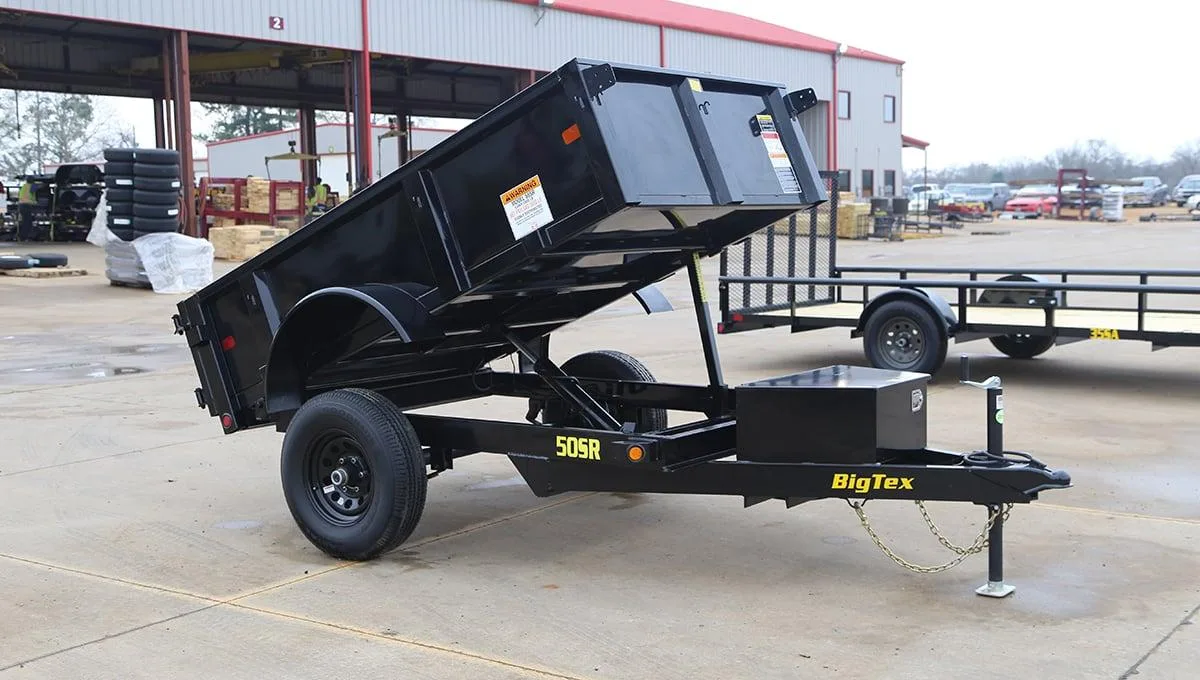

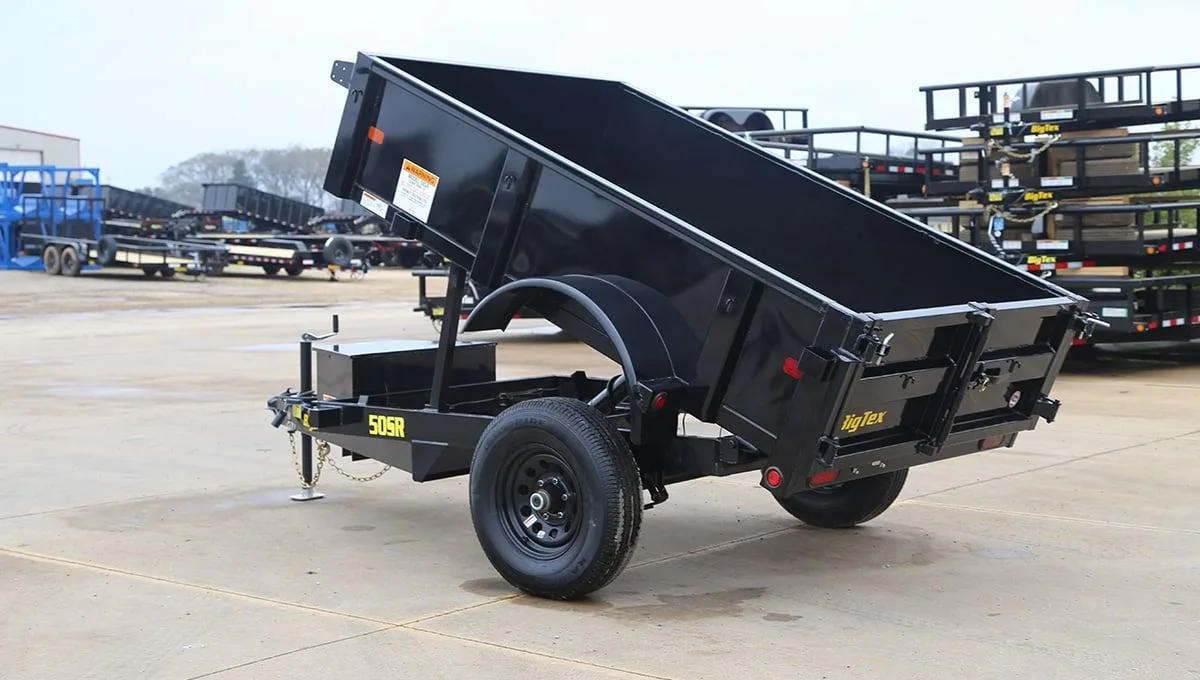

BIG TEX 50SR – 5 ft Wide 5000 LB. GVWR Low Profile Single Axle
The Big Tex 50SR Single Axle Single Ram Dump Trailer comes in great compact model. The 60” x 10 dump trailer has a payload of 3,320 pounds and a box capacity of 3.0 cubic yards.
Model(s): 50SR-10
Available Sizes: 5 x 10′
Call or Stop by your local Truck’n America today!
FEATURES
Lockable Pump & Battery Box Mounted in Front of
Bed
20”, 16 Ga. Sides w/Formed Channel Supports
J-Hooks for Tie Down
Tarp Brackets
Single Cylinder Lift
45 Degree Dump Angle
Rear Spreader Gate
EZ Lube Hubs
Dexter Brand Axles
Nev-R-Adjust Electric Brakes
Cambered Axles
Diamond Plate Fenders
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Protected Wiring
Removable Sand Foot on Jack
Complete Break-A-Way System w/Charger
Radial Tires NEW!
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
SPECIFICATIONS
G.V.W.R. 5,000#
G.A.W.R. (Ea. Axle) 5,080#
Coupler 2-5/16” Stamped A-Frame
Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)
Jacks 2,000# Top Wind (Bolted On)
Tongue 5” Channel
Frame 5” Channel
Crossmembers 6” Channel
Bed Crossmembers 2” Channel
Bed Side Rails 3” x 2” Tubing
Fenders 9” x 32” Double Square Broke Diamond Plate
Axles One 5,200# EZ Lube w/Elec. Brakes
Suspension Multi-Leaf Spring w/Equalizer
Tire ST235/80R-16 Load Range E
Wheel 16″ x 6″; White Spoke 6 Bolt
Floor 16 Gauge Smooth Steel
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Elec. Plug 7-Way RV
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
Model# Description
50SR-10-5W 60” x 10’ Single Axle Single Ram Dump
Trailer Weights & Capacities
Length Empty Weight Payload Box Capacity
10’-5W 1,680# 3,320# 3.0 Cubic Yards
*Weights shown are for base models without options and are estimates only.
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
