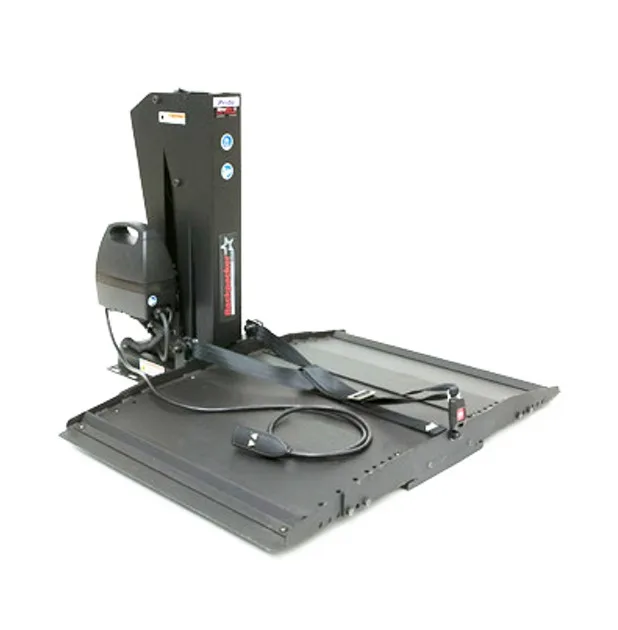

PRIDE Backpacker AVP – Interior Chair & Scooter Lift and Carrier

Call for price

Description

PRIDE Backpacker AVP – Interior Chair & Scooter Lift and Carrier

Now you can easily take your mobility device on the road in your sport utility vehicle with the Backpacker® AVP from Pride® Lifts and Ramps. It’s the ultimate solution to lifting your powered mobility device into your vehicle, engineered specifically to be a perfect fit for a wide variety of popular vehicles including SUVs.

Like all Pride Lifts, the Backpacker AVP features all-steel construction and a protective finish, along with an industrial rated 12 volt motor and battery pack, and easy-to-use controls to combine rugged durability with safe, simple and reliable operation.





Features

Adjustable platform for smaller SUVs 42″-34″

Removable, front drive panel for easier serviceability

Adjustable wheel chocks on the platform surface

New, angled low-profile platform

Easy-to-use two button hand control

Can lift a wide range of Pride® Scooters and Power Chairs and other manufacturers’ mobility devices

350 lbs. lifting capacity

Fits into SUVs with a 31″ opening height

Manual override

Specifications

Model Backpacker AVP

Base Weight1 193 lbs.

Maximum Mobility Product Overall Weight2 350 lbs.

Maximum Mobility Product Width 27″

Overall Platform Length 42″ – 34″ adjustable

(41″ – 33″ usable surface)

Maximum Travel Distance From the Ground 37″

Motor Sealed 12 volt DC

Warranty 3-year transferable

Options Battery pack w/charger

Vehicle Platform Full-size van, Minivan, SUV and Crossover

Notes 1 Does not include any accessories or hardware.

2 Lifting weight does not include accessories or certain upgraded seating. Please contact Customer Service for greater detail.

The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.

Popular Options

Battery Pack
Battery Pack

Battery Pack

  • The addition of the power source eliminates the need for wires to be run from the lift to the automobile battery when installed, thus reducing installation time, cost, and complexity
  • All of Pride’s power lifts (except the Olympian) have the option of selecting their own 12 volt power supply which easily recharges by plugging the unit into any standard wall outlet. Each charge lasts approximately 150 cycles*
  • Lifts may be wired to the vehicle’s power supply upon request.
  • By using the battery pack option, the lifts can be easily transferred from one vehicle to another

*Tested under ideal conditions using 325 lb. Scooter. Cycles per charge may vary depending on various factors such as scooter or power chair weight and climate.


Multi-Purpose Battery Pack
Multi-Purpose Battery Pack

Multi-Purpose Battery Pack

  • Industry first and industry exclusive!
  • Easy installation
  • Integrated smart charging system, will not drain your vehicle’s battery
  • Charges the mobility device from the lift as you drive
  • No hardwiring, just plug into auxiliary power outlet
  • Trickle charge battery every time vehicle turns on
  • Converts vehicle’s 12v system to a mobility device’s 24v system
  • Compatible with Backpacker Series

In-House Charger
In-House Charger

In-House Charger

  • Charge your Pride Lift Battery Pack in your home by plugging into a standard 120 VAC electrical outlet
  • Color changing LED shows when the Battery Pack is fully charged
  • Mounting base plate makes it easy to charge anywhere

Hitch Extension
Hitch Extension

Hitch Extension

  • The hitch extension tube adds an additional 4″ of clearance between vehicle and lift while maintaining a weight capacity of 325 lbs.
  • This helps provide you with extra clearance if your vehicle posses a recessed hitch.

Hitch Riser
Hitch Riser

Hitch Riser

  • Because some vehicles have lower hitch points than others, the Universal Hitch Riser allows you to raise your hitch mounted lift an appropriate distance above the level of your hitch point.
  • This helps to avoid scraping on steep inclines.
  • Simply slide the Universal Hitch Riser into your trailer hitch receiver tube and secure.
  • Adds 4 inches of additional height.

Power Chair Cover
Weather Cover – Power Chair

Weather Cover – Power Chair

  • The Power Chair Weather Breaker Cover helps keep the outside elements away from of your power chair while traveling.
  • The durable one-piece cover protects electronic components and keeps your seat clean and dry.

NOTE: When used on an outside lift system, the weather covers must be secured not only with the drawstring, but also with a heavy gauge nylon cord threaded through the grommets and secured to the mobilitydevice. The drawstring closure should only be used by itself during stationary storage, such as on a porch or in a garage.


Scooter Cover
Weather Cover – Scooter

Weather Cover – Scooter

  • This one-piece cover helps keep the outside elements away from your scooter while traveling
  • It shields your whole scooter, protecting the tiller and electronics while keeping the seat clean and dry.

NOTE: When used on an outside lift system, the weather covers must be secured not only with the drawstring, but also with a heavy gauge nylon cord threaded through the grommets and secured to the mobilitydevice. The drawstring closure should only be used by itself during stationary storage, such as on a porch or in a garage.

DISCLAIMER: Not all accessories are available for all products. Please speak with your Provider for details and availability.
