American Landmaster – AMP 4X2 2024 – ELECTRIC Side-By-Side 4×2 UTV

Call for price

STARTING AT

$13,999*

*DESTINATION CHARGE & SETUP FEES EXTRA. FREIGHT SURCHARGE $250

Brand: American Landmaster

Description

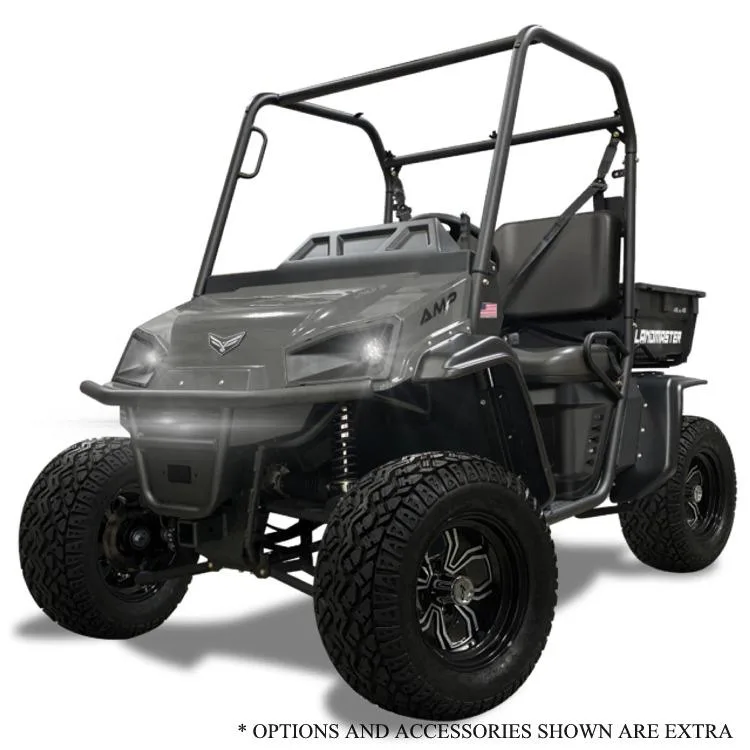

AMP 4×2 2024

AMPLIFY YOUR WORK & PLAY

Introducing our new series of Electric UTVs, the AMP, by Landmaster. The AMP 4×2 delivers more torque, higher towing and hauling capacities, an ultra-quiet motor, and the extremely plush and capable L-ROSS (Landmaster Ride Optimized Suspension System) ride experience you expect from Landmaster.

PRO TIP: The AMP 4×2 is great for light-duty work, quiet rides, and fun with friends and family.

Features

DISCOVER AMP FEATURES

LONGER LASTING, LONGER RANGE LITHIUM IRON PHOSPHATE BATTERIES
Up to a 50-mile range. Lithium Iron Phosphate batteries are rated to last up to 10 years with 3,500 recharge cycles.
CHARGE TECHNOLOGY / EASY-ACCESS CHARGING PORT
Charge time is 6-8 hours. Charge at home with 110V.
MAX SPEED / MAX RANGE MODES
Max of 30MPH (Programmed at factory for LSV and Flip Seat compliance).
ULTRA-SMOOTH, QUIET RIDING EXPERIENCE
Built on the Landmaster flagship chassis, with our L-ROSS (Landmaster Ride Optimized Suspension System) to provide an ultra-smooth riding experience over bumps, hills, and cornering tight turns.
ADD ACCESSORIES WITH CONFIDENCE
Our lithium iron phosphate battery system is uniquely constructed to allow you to add any electronic accessory we offer except for the winch. Lights, sounds, music, and plows can all be added without concern for overloading the battery system.
KNOW WHEN YOU’RE LOW – BATTERY ALERT SYSTEM
Our system is equipped with an LED true state-of-charge meter in addition to an audible alert system that notifies the driver when the battery power is at 10%. Each bar represents 10%.
MAINTENANCE FREE / BUILT-IN PROTECTION
No liquid filling, no terminal tightening or cleaning acid deposits on the top of our batteries. It comes standard with protection for overcharge, over-discharge, overheating, and short circuits.
HEAVY-DUTY ON ROAD/OFF ROAD 25″ TIRES
Standard on AMP is our 25”, 6-ply DOT-certified tires mounted on steel rims. Upgrade to an aluminum rim or other tire packages available online.
LIGHT WEIGHT – MORE CARRYING CAPACITY
With both options of lithium iron phosphate batteries weighing less than a typical lead acid battery setup, you can travel further and carry more payload. 105Ah battery weighs 95lbs, 16Ah weighs 160lbs.
BUILT-IN FRONT & REAR HITCH RECEIVER
Tow and haul trailers, implements, and other tools with our built-in rear receiver hitch.
SAFETY, SERVICE, RELIABILITY
360° ROPS (Roll-Over Protection System) certified
1-year full bumper-to-bumper warranty, 5-year
battery
Fully sealed half-shaft boots & tie rod ends
High-impact / high-temp resistant bushings
Automotive-grade ball joints and wheel hub and
bearing
Weather-sealed wiring connections
PERFORMANCE
L-ROSS (Landmaster Ride Optimized Suspension System)
Best-in-class comfort, performance, and capability in your shocks
Over 8” of suspension travel for both front and rear suspensions
DESIGN
Two-tone design interior and exterior
Side skirts and fenders
Aggressive front-end look
Flat roof design
Marine-grade, high-density foam, contoured seats
Automotive-grade, waterproof, back-lit switches
RIDE EXPERIENCE
Expect to experience higher torque, towing, and hauling capabilities, along with an ultra-quiet motor and L-ROSS (Landmaster Ride Optimized Suspension System)
HYDRAULIC BRAKE SYSTEM
4 wheel hydraulic brakes
Parking brake

Specifications

SPECIFICATIONS

POWER
AC motor, powered by a 48V DC Lithium Iron Phosphate Battery at 5K Watts / 8K Watts with 600 amp controller
SPEED
30MPH (24MPH with Rear Flip Seat)
RANGE
Up to 35 miles ( 105Ah battery) | Up to 50 miles ( 160Ah battery)*
STARTING
Keyed on/off
BATTERY
Standard Range 48V 105Ah Lithium Iron Phosphate or Extended Range 48V 160Ah Lithium Iron Phosphate
TRANSMISSION
Direct drive
TRANSAXLE
Model 24 Schafer
DIFFERENTIAL
Cable Activated Locking
DRIVE
2 wheel drive
FRONT SUSPENSION
Double A-arms, adjustable coilover shock with up to 8″ travel
REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coilover shock with up to 8″ of travel
BRAKE SYSTEM
4 wheel disk, hydraulic brake
TIRES
25” Standard Max-Terrain HD DOT / Radial 8 Ply Tires on 12” Steel Wheels
DIMENSIONS
110” L x 58” W x 76” H
WHEEL BASE
73”
TURNING RADIUS
9’ inside radius
GVWR
2,070 lbs.
CURB WEIGHT
1,200 lbs. with 10Ah battery
BED MATERIAL
Structural foam “Poly Bed” with stake pockets
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
GROUND CLEARANCE
11″
*BED CAPACITY
Poly – 9 cu.ft. / Steel – 11 cu.ft. / L-ROSS – 400lbs. / HD L-ROSS – 600lbs.
TOWING CAPACITY
1,500 lbs.
TOTAL CAPACITY
900 lbs.
WARRANTY
1-year motor / all other 1-year limited, 5-year prorated Lithium Iron Phosphate battery
ADDITIONAL FEATURES
On-board charger, 3pt lap/ shoulder belts for driver & passenger, 12V/18W LED headlights, 2” rear and front receiver hitch, welded steel frame, Single 12V auxiliary outlet for accessories, polyurethane powder paint. Complete weather-sealed wiring connections. Wide selection of additional accessories available along with three bed options. In-dash, hour meter standard. LED true state of charge meter for the 48 volt system is standard. Low charge audible warning. Battery shut down switch. Electric accelerator pedal.
HILL CLIMBING CAPABILITIES
Your AMP is capable of climbing continuous inclines up to 25 degrees. Depending on the passenger(s) and cargo weight, expect top speed between 5-10 MPH.
VEHICLE PACKAGES
Standard // Powersteering // Sport

Accessories

SHOP ACCESSORIES

What can we make more manageable for you? Accessories are where you make your Landmaster model your own, allowing you to customize your vehicle for the type of work or play you’re doing. We’ve got accessory options for sound, lighting, cargo management, safety, and customization. Making things more straightforward, every Landmaster UTV is built using the same frame design, which means in almost every case, each model universally accepts the accessories. There is no confusing matrix to sort through to ensure you’re buying the right part, and no long holds with customer service to get your question answered. Find the accessory you want, and get to work.

Popular Options

BATTERY OPTIONS

STANDARD 105AH LITHIUM-ION BATTERY (45 MILE RANGE)
EXTENDED RANGE 160AH LITHIUM-ION BATTERY (65 MILE RANGE)

VEHICLE PACKAGES

STANDARD STEERING
POWERSTEERING PACKAGE
TRAIL PACKAGE
Winch, Roof, Split Windshield, CV Guards, USB Port, Upgraded Bumper, Center Console with Lock
CRUISER CLASSIC
Power Steering, Plastic Roof, Split Windshield, Side Mirrors, Rear Mirrors, 25″ Premium Max-Terrain HD DOT / Radial 8 Ply Tires on 12″ Aluminum Wheels, USB Port, Center Console with Lock

SHOCKS

STANDARD SHOCKS
Bed Payload 500lbs
HEAVY-DUTY SHOCKS
(+200lbs) Bed Payload 700lbs
KIT, L5 / L7 / AMP FLIP SEAT SHOCK SET
Only Available With Purchase of Flip Seat

WHEELS / RIMS

8″ FRONT / 10″ STANDARD MAX TERRAIN WHEEL PACKAGE (PN: 19488)
Trail riding, off-roading, and hill climbing
8″ FRONT / 10″ PREMIUM MAX TERRAIN WHEEL PACKAGE (PN: 19169)
Trail riding, off-roading, and hill climbing
8″ FRONT / 10″ STANDARD TRAIL-RIDER WHEEL PACKAGE (PN: 19031)
Ultra-smooth-riding on/off road tires.
8″ FRONT / 10″ PREMIUM TRAIL-RIDER WHEEL PACKAGE (PN: 17288)
Black and chrome aluminum rims
25″ CRUISER DOT TIRES ON 12″ FUSION ALLOY WHEELS (PN: 19844)
Gentle on lawns. Smooth on road.
24” TURF & COMMERCIAL TIRES ON 12” STEEL WHEELS (PN: 19793)
Gentle on lawns. Smooth on road.
25″ GLADIATOR 8 PLY TIRES ON 12″ STEEL WHEELS (PN: CA00057)
8″ front / 10″ back
25″ GLADIATOR 8 PLY TIRES ON 12″ STEEL WHEELS (PN: CA00056)
10″ front / 10″ back

SEAT

STANDARD MARINE GRADE VINYL SEAT
DELUXE UPGRADE SEAT

HOOD COLOR

CAMO HOOD
Camo
MIDNIGHT BLUE HOOD
GUN METAL GRAY HOOD
BLACK HOOD
Black
RED HOOD
Red

BUMPER

STANDARD BUMPER
Integrated LED Light Standard On All AMPs
HEAVY DUTY BUMPER
Integrated LED Light Standard On All AMPs

BED OPTIONS

POLY BED
FLIP SEAT / TAIL GATE
Requires Reduced Speed – 24MPH Model Option
CONVERTIBLE STEEL BED / FLAT BED

ELECTRIC BED OPTIONS

ELECTRIC BED DUMP
Not for use with long range 160 AH battery

LIGHTS & SOUND

FRONT LED LIGHT
STREET LIGHT & HORN PACKAGE
Turn Signals, Horn, Backup Alarm, Tail Lights, Strobe Connect, license plate & bracket
WORK & RIDE LIGHT PACKAGE
Front LED, Dome, & Rear Flood Light
COMMERCIAL SIGNAL PACKAGE
Horn, Strobe, Tail Lights, & Backup Alarm
USB PORT
STROBE
Option for Street Light & Horn Package
2 SPEAKER WET SOUNDS MARINE STEREO SYSTEM
TAIL LIGHT KIT

WINDSHIELDS

POLY CARBONATE SPLIT WINDSHIELD
SINGLE PIECE WINDSHIELD

ROOFS

PLASTIC ROOF

STORAGE & TASK

FRONT RACK
DUAL GUN RACK / TOOL RACK
GRAB HANDLE (SET OF 2)
TOOL CLAMP (SET OF 2)
WINCH – 3,000 LBS. NYLON
CENTER CONSOLE WITH LOCK BOX
STEEL TUNNEL

VEHICLE PROTECTION & ENCLOSURES

FRONT CV GUARD (SET OF 2)
CAB ENCLOSURE

SNOW PLOWS

SNOW PLOW 50″ WINCH POWERED
Requires winch. WINCH NOT INCLUDED.
SNOW PLOW 60″ WINCH POWERED
Requires winch. WINCH NOT INCLUDED.
SNOW PLOW 50″ DUAL ACTUATED
SNOW PLOW 60″ DUAL ACTUATED

MIRRORS & SAFETY

SIDE MIRRORS
REAR MIRROR

DECALS

ALL-AMERICAN GRAPHIC
