Model

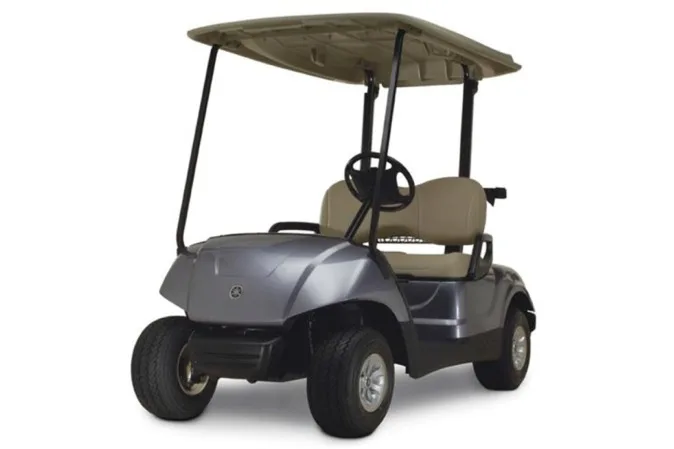

THE DRIVE® Fleet (Gas)
Measurements
Length
94.3 in. (2,395 mm)
Height
70.4 in. (1,789 mm) with suntop
46.9 in. (1,190 mm) without suntop
Width
47.2 in. (1,200 mm)
Weight
703.3 lbs. (319 kg) with suntop
Wheelbase
64.6 in. (1,640 mm)
Ground Clearance
4.3 in. (110 mm) minimum
Turning Radius
9.2 ft. (2.8 m)
Engine
Engine
Yamaha built, low-emission, 1-cylinder, 60° incline, OHV, forced-air cooled
Horsepower
11.4 hp (8.5 kW) @ 3,500 rpm
Carburetion
Mikuni BV26-18
Ignition
Transistor magneto
Air Filter
2-stage, urethane-foam pre-cleaner and high-capacity pleated paper cartridge
Fuel Tank Capacity
5.8 gal. (22 l)
Lubrication
Splash-style positive oil
Drivetrain
Transmission
Mechanical, 2 rear wheel transaxle
Operational
Steering
Self-compensating double reduction helical rack-and-pinion, permanently lubricated with sealed bearings and greaseless tie-rod ends
Brakes
Self adjusting rear drum
Suspension
Front: Tru-Trak II™ fully independent automotive-style strut
Rear: Mono-linkage
Tires
18 x 8.5-8 (4-ply rating)
Front Wheel Tread: 34.3 in. (870 mm)
Rear Wheel Tread: 38.6 in. (980 mm)
Seating
Seamless, fabric-backed vinyl bonded to pure, virgin foam contoured seat cushions and mated to a warp and moisture resistant polypropylene bottom, strengthened with plated steel inserts
Capacity: 2 persons
Speed
Max Forward: 15 mph (24 km/h)
Max Reverse: 10 mph (16 km/h)
Frame
HybriCore™ chassis features a robotic welded automotive ladder-style steel frame mated to a polypropylene structural floor; frame is protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester / urethane powder topcoat
Other
Colors
Glacier, Sunstone, Emerald, Garnet, Tanzanite, Moonstone Metallic, Sandstone Metallic
