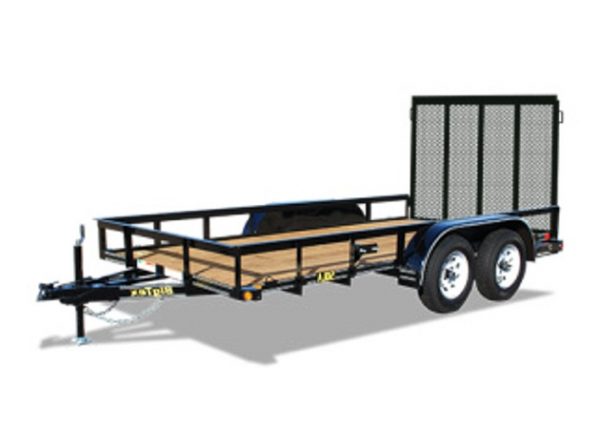

BIG TEX 50LA – 6 ft Wide – 5000 LB. GVWR Tandem Axle Wood Floor

Specifications

SPECIFICATIONS

G.V.W.R. 5,000#

G.A.W.R. (Ea. Axle) 3,500#

Coupler 2” A-Frame

Safety Chains 1/4” Grd. 30 w/Safety Latch Hook (2 ea)

Jack 2,000# Top Wind (Bolted On)

Tongue 4” Channel

Top Rail 3” x 2” x 3/16” Angle

Frame 3” x 2” x 3/16” Angle

Crossmembers 3” x 2” x 3/16” Angle

Uprights 14” Tall 2” x 2” x 1/8” Angle

Fenders 9” x 72” Rolled Formed w/Back

Axles (2) 3,500# EZ Lube w/(1) Elec. Brake

Suspension Multi-Leaf Spring w/ Equalizer

Tire ST205/75-15 Load Range C

Wheel 15″ x 5″; White Spoke 5 on 5 Bolt Pattern

Floor 2″ Treated Pine or Douglas Fir*

Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Elec. Plug 7-Way RV

Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish

Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

*Douglas Fir Available from Caldwell, ID Facility Only

 Model# Weight Description

50LA-10 1,225# 77” x 10’ Tandem Axle Trailer

50LA-12 1,265# 77” x 12’ Tandem Axle Trailer

50LA-14 1,400# 77” x 14’ Tandem Axle Trailer

50LA-16 1,535# 77” x 16’ Tandem Axle Trailer

50LA-18 1,670# 77” x 18’ Tandem Axle Trailer

Dimensions

Length A B C

10’ 121-1/2” 73” 48-1/2”

12’ 145-1/2” 85” 60-1/2”

14’ 169-1/2” 103” 66-1/2”

16’ 193-1/2” 115” 78-1/2”

18’ 217-1/2” 127” 90-1/2”

 Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
