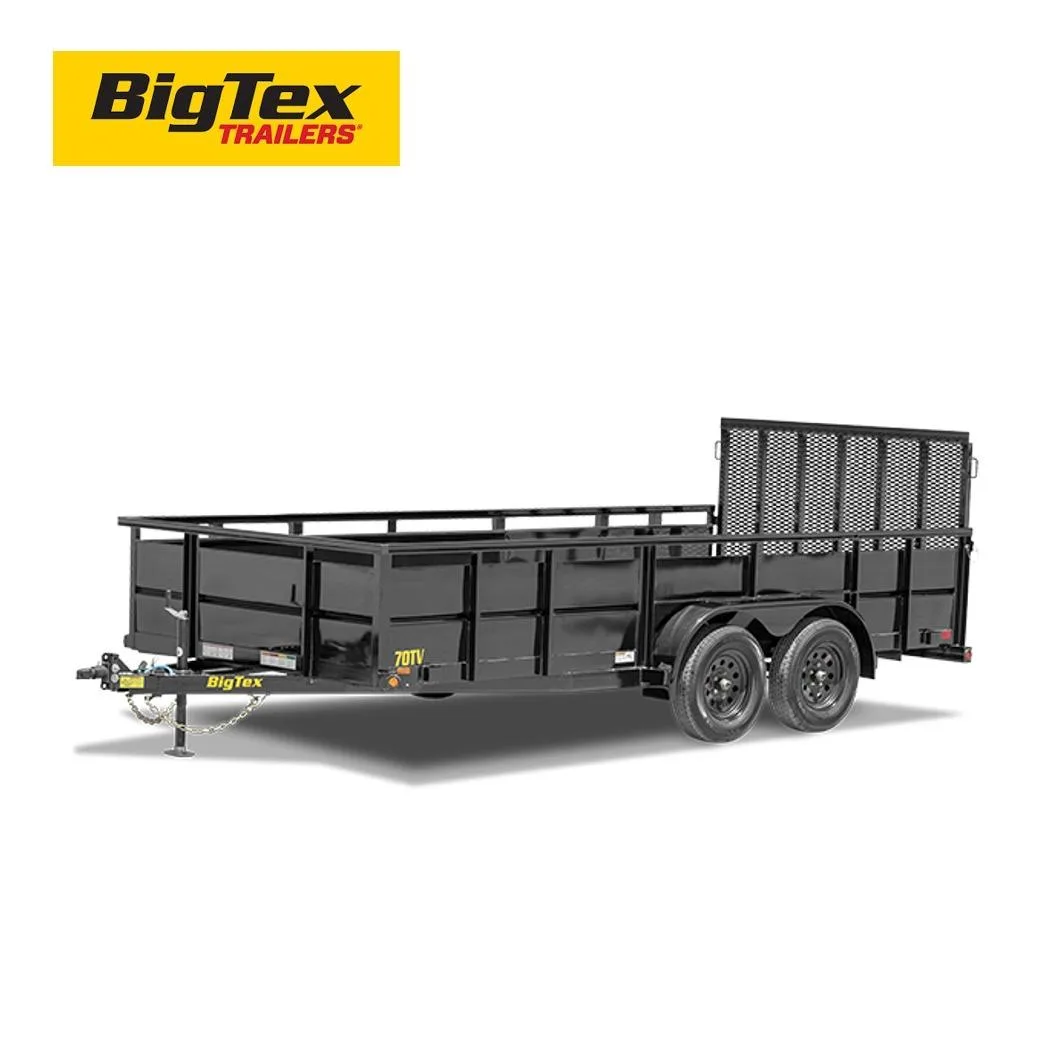

BIG TEX 70TV – 7 ft Wide – 7000 LB. GVWR High Side Tandem Axle Wood Floor

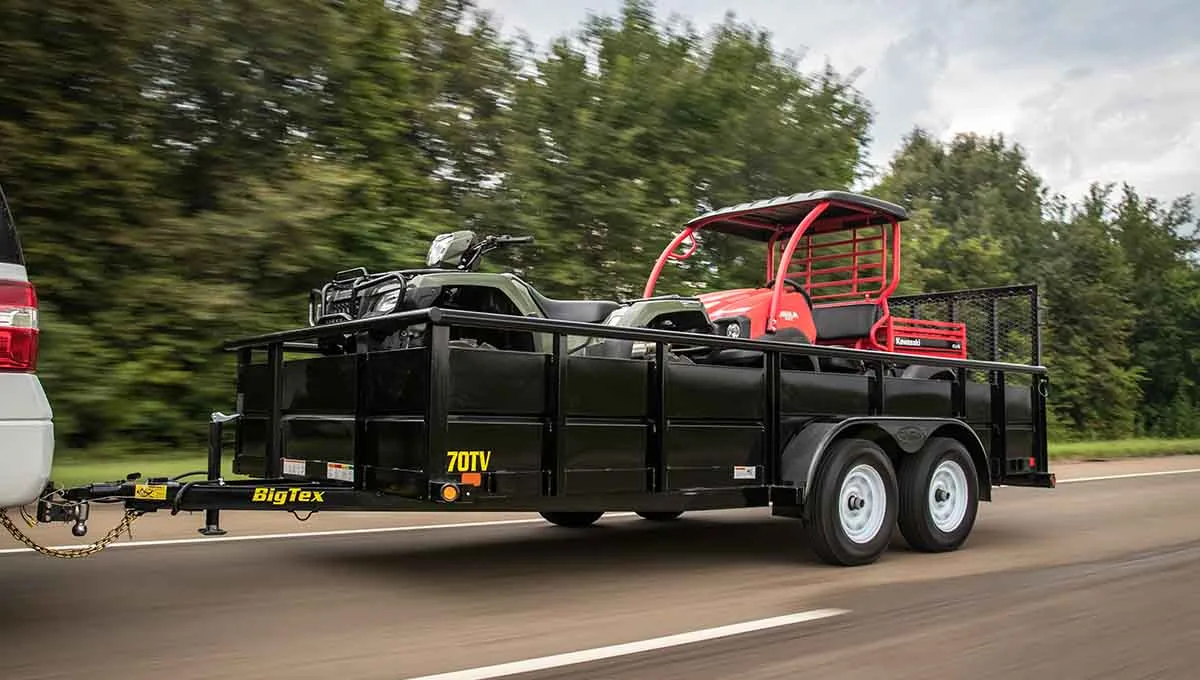

The 70TV Tandem Axle Vanguard Trailer from Big Tex Trailers has a wide width and higher v-crimped steel sides that provide it with the versatility to protect your cargo while hauling just about anything you need. This trailer is perfect for heavy lawn and garden use, as well as heavy duty landscaping.
Model(s): 70TV-12, 70TV-14, 70TV-16, 70TV-18
Available Sizes: 7×12′, 7×14′, 7×16′, 7×18′
Call or Stop by your local Truck’n America today!
Features
FEATURES
(4) Tie Down Loops Inside Bed
(4) Tie Down Pockets on Outside Frame
Forged, 7,000# Coupler
Fold Back/Wrap Tongue (14’ & Longer)
Set-Back Jack
EZ Lube Hubs
Dexter Brand Axles
Nev-R-Adjust Electric Brakes
Cambered Axles
2-3/8” Pipe Top Rail
29-3/8” Tall Sides w/ 24” V-Crimped Steel Panels

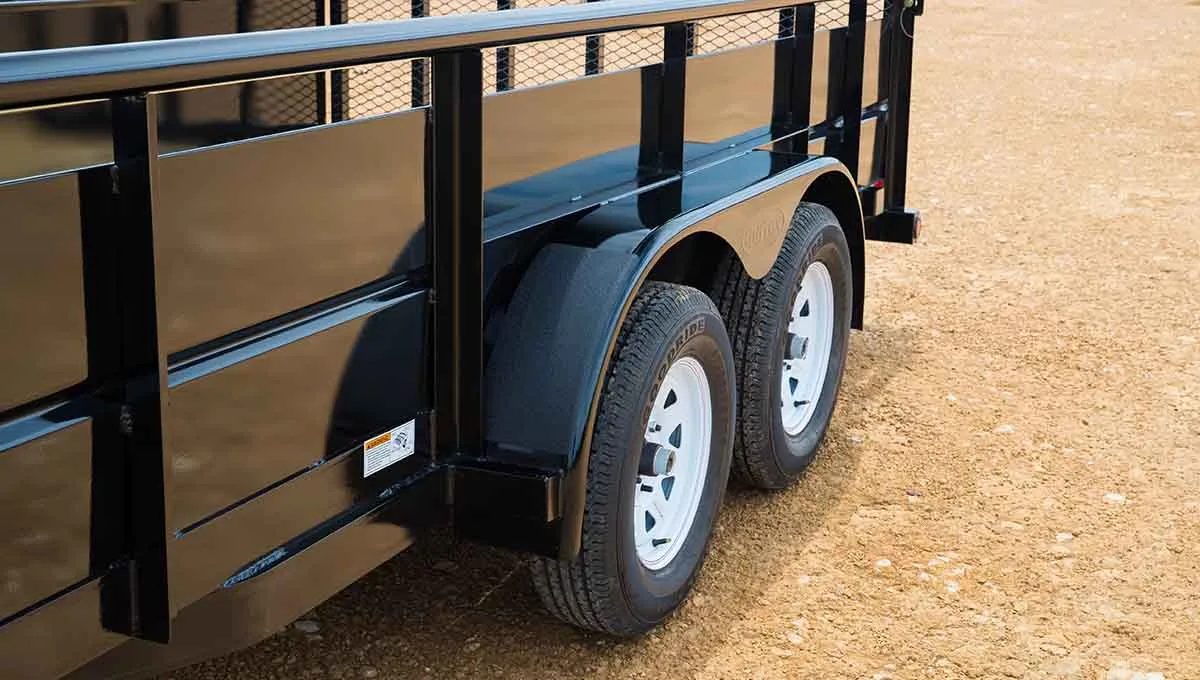

Tear Drop Style Fenders
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Protected Wiring
Removable Sand Foot on Jack
Complete Break-A-Way System w/Charger
Radial Tires “NEW!
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
Specifications
SPECIFICATIONS
G.V.W.R. 7,000#
G.A.W.R. (Ea. Axle) 3,500#
Coupler 7K 2” Forged Coupler
Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)
Jack 2K Top Wind-Set Back (Bolted On)
Tongue 4” Channel Fold Back Tongue
Top Rail 2-3/8” Pipe Top Rail
Frame 4” x 3” x 1/4” Angle
Crossmembers 3” x 2” x 3/16” Angle
Sides 3” x 2” x 3/16” Angle
Fenders 9” x 72” Tear Drop
Axles (2) 3,500# EZ Lube w/ (1) Elec. Brake
Suspension Multi-Leaf Spring w/ Equalizer
Tire ST205/75R-15 Load Range C
Wheel 15″ x 5″ White Spoke 5 on 5 Bolt Pattern

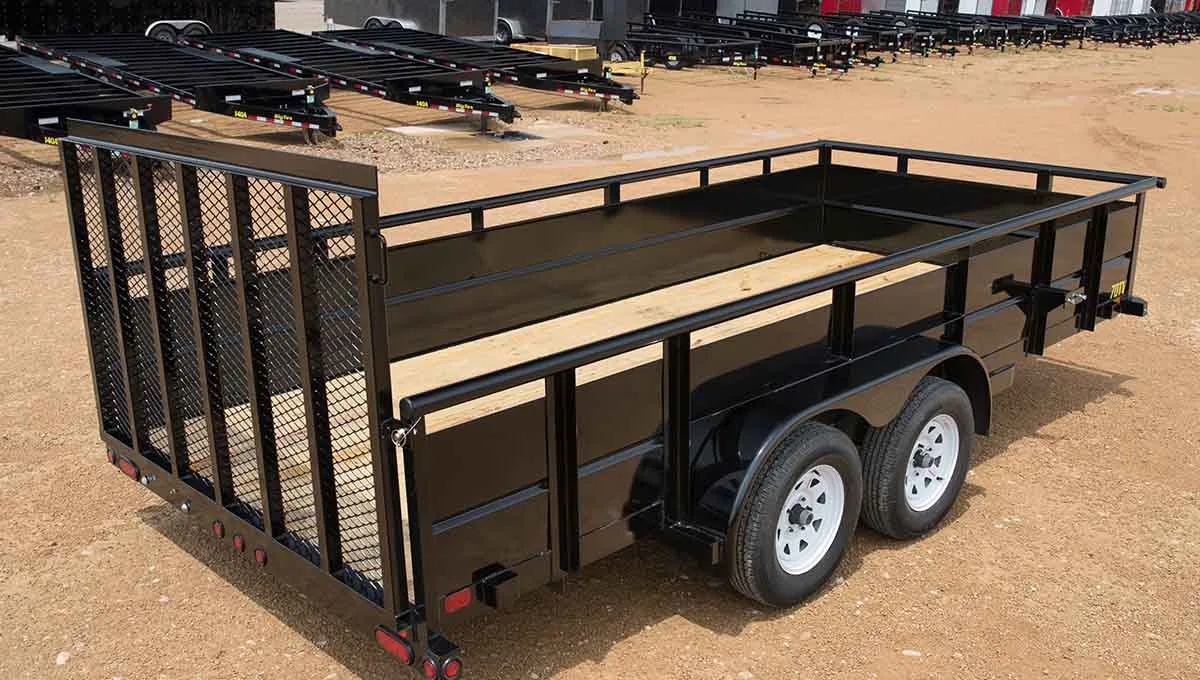

Floor 2” Treated Pine od DOuglas Fir*
Lights LED D.O.T. Stop, Tail, Turn, & Clearance
Elec. Plug 7-Way RV
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Model# Weight Description
70TV-12 1,665# 83” x 12’ Tandem Axle Vanguard
70TV-14 1,755# 83” x 14’ Tandem Axle Vanguard
70TV-16 1,845# 83” x 16’ Tandem Axle Vanguard
70TV-18 1,935# 83” x 18’ Tandem Axle Vanguard
Dimensions
Length A B C
12’ 145-1/2” 85” 60-1/2”
14’ 169-1/2” 103” 66-1/2”
16’ 193-1/2” 115” 78-1/2”
18’ 217-1/2” 127” 90-1/2”
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
Popular Options
POPULAR OPTIONS
Category Description
COUPLERS 2-5/16” Stamped Coupler
COUPLERS 2-5/16” Forged Coupler
JACKS 2,000# Fold-Up Jack
JACKS 7,000# Drop-Leg Jack
BRAKES Electric Brakes on 2nd Axle
BRAKES Hydraulic Surge Brakes 1 Axle w/ Balcrank Actuator
BRAKES Hydraulic Surge Brakes 2 Axles w/ Balcrank Actuator
TIRE/WHEEL Spare Tire Mount (Side)
TIRE/WHEEL Spare Tire (ST205/75R-15 LR-C)
TIRE/WHEEL Tire Upgrade (ST225/75R-15 LR-D)
TIRE/WHEEL Spare Tire Upgrade (ST225/75R-15 LR-D)
RAMPS 4′ Tall Rear Rampgate
RAMPS 5′ Tall Rear Rampgate
RAMPS 4′ Heavy Duty Integrated Rampgate w/Gas Shock Assist
RAMPS Gas Shock Assist Option for Rampgate
BODY 1/8” Diamond Plate Steel Floor (Per Square Foot)
CARGO CONTROL Bolt-On Landscape Box (24″ x 24″ x 87″)
CARGO CONTROL 3-Place Trimmer Racks (Bolt On)
CARGO CONTROL 5-Place Tool Holder (Bolt On)
CARGO CONTROL Additional Tie Loops (Each)
CARGO CONTROL Additional Tie Down Pockets (Each)
