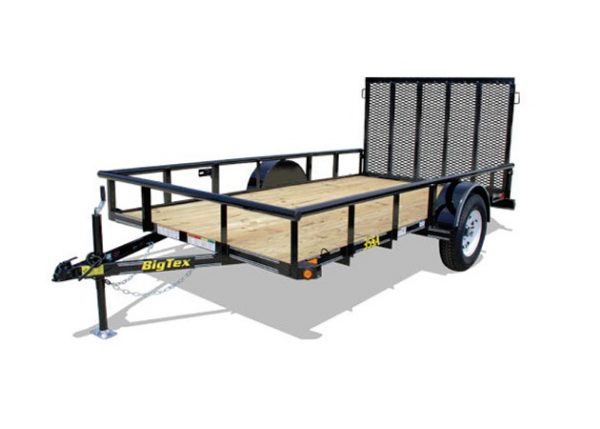

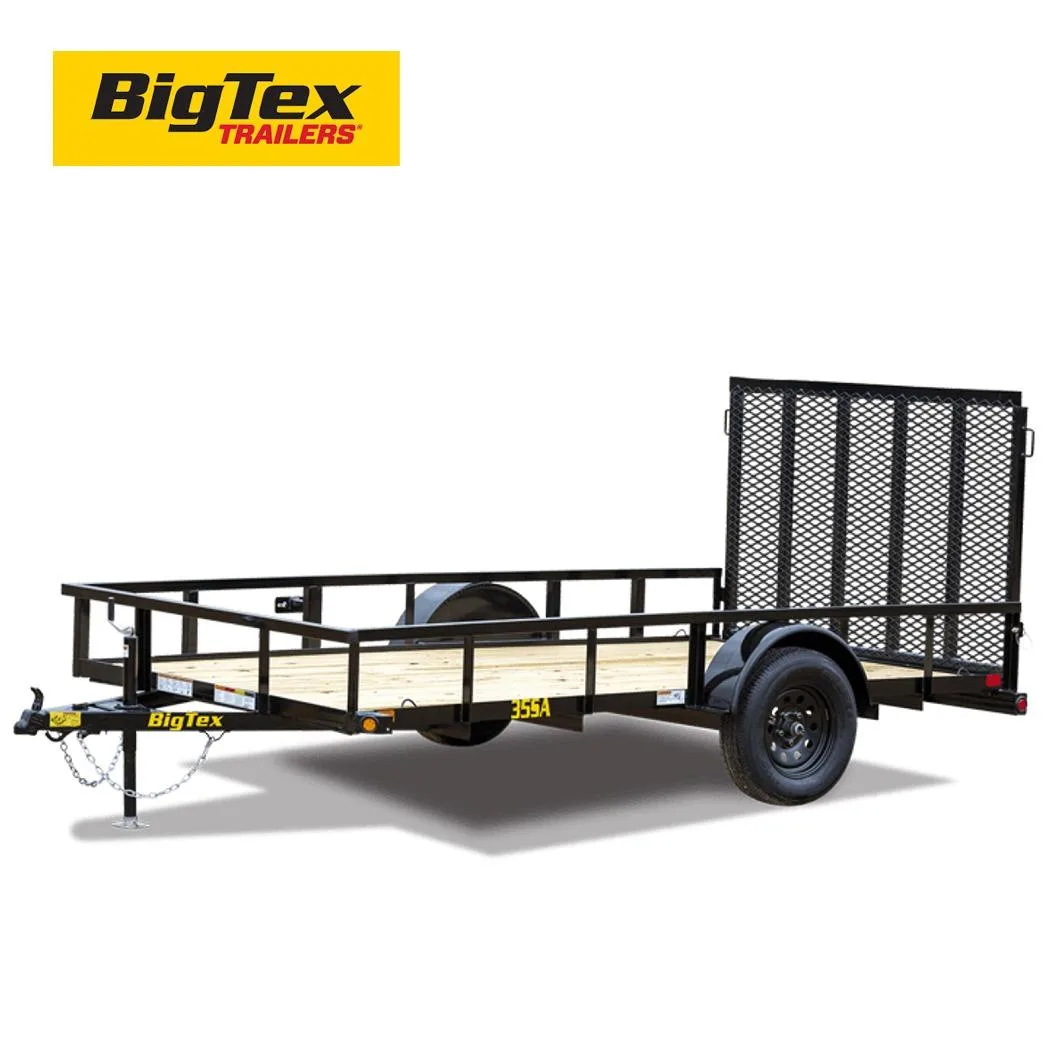

BIG TEX 35SA – 6 ft Wide – 2990 LB. GVWR Wood Floor

Call for price

Brand: Big Tex Trailers

Description

BIG TEX 35SV – 6 ft Wide – 2990 LB. GVWR Wood Floor

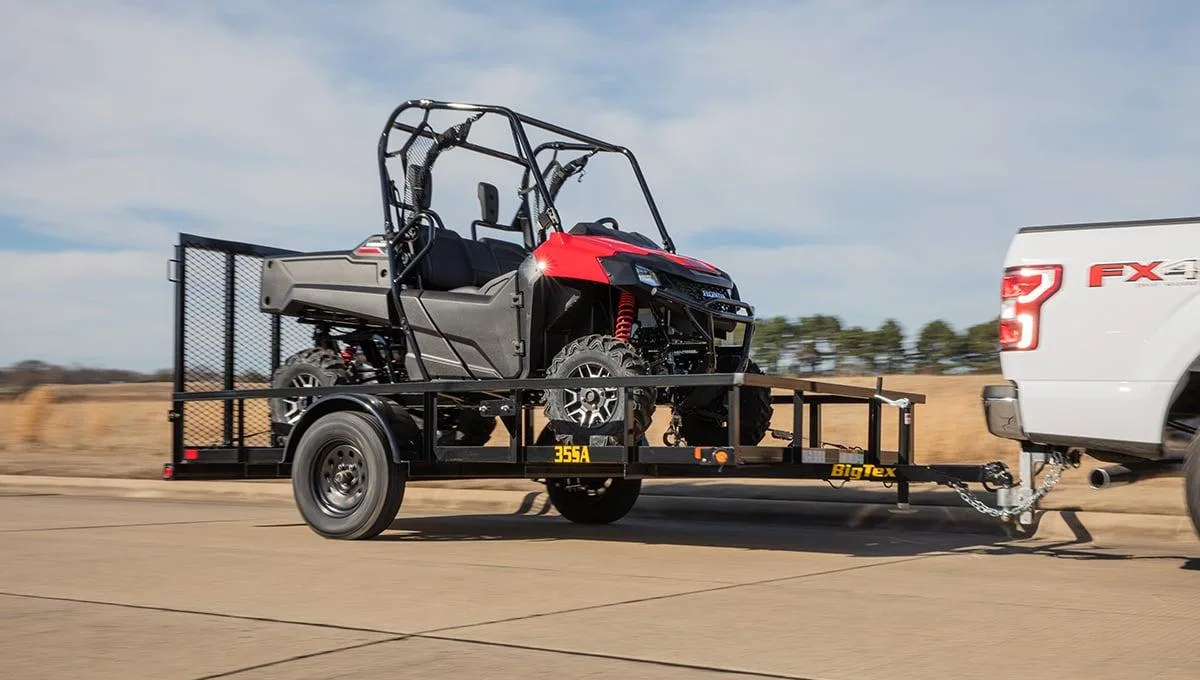

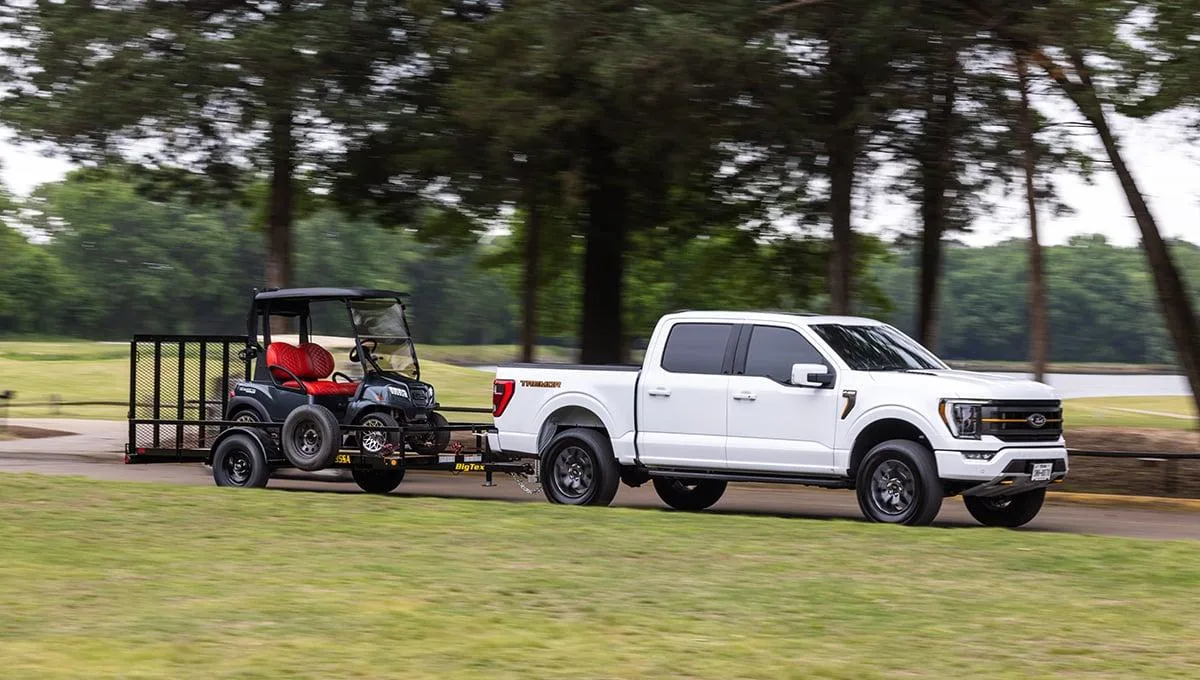

The 35SA Single Axle Utility Trailer from Big Tex Trailers is a versatile economy model works great for hauling large ATVs and Mules… perfect for home and garden use.

Model(s): 35SA-10, 35SA-12, 35SA-14

Available Sizes: 6 x 10′, 6 x 12′, 6 x 14′

*** AVAILABLE IN HIGH MESH SIDES ***

Call or Stop by your local Truck’n America today!

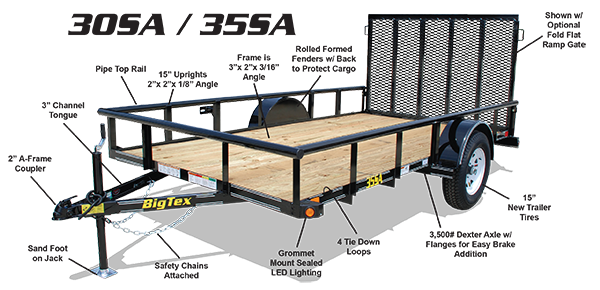

Features

FEATURES

(4) Tie Down Loops Inside Bed

EZ Lube Hubs

Dexter Brand Axle

Pipe Top Rail

Grommet Mount Sealed Lighting

L.E.D. Lighting Package

Protected Wiring

Radial Tires NEW!

Brake Flanges on Axle for Easy Brake Addition

Removable Sand Foot on Jack

A-Frame Channel Tongue

Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Specifications

SPECIFICATIONS

G.V.W.R. 2,995#

G.A.W.R. 2,995#

Coupler 2” A-Frame

Safety Chains 1/4” Grd. 30 w/Safety Latch Hook (2 each)

Jack 2,000# Top Wind (Bolted On)

Tongue 3” Channel

Top Rail 2″ Pipe ON 30SA, 2-3/8″ Pipe on 35SA

Frame 3” x 2” x 3/16” Angle

Crossmembers 3” x 2” x 3/16” Angle

Uprights 15″ Tall Angle, 1-1/2″ Angle (30SA), 2” Angle (35SA)

Fenders 9” x 32” Rolled Formed w/Back

Axle 3,500# EZ Lube Axle w/ Brake Flanges

Suspension Multi-Leaf Spring

Tire ST205/75R-15 Load Range C

Wheel 15″ x 5; White Spoke, 5 on 5 Bolt Pattern

Floor 2″ Treated Pine or Douglas Fir*

Lights LED D.O.T. Stop, Tail, Turn, & Clearance

Elec. Plug 4-Way Flat w/Loom

Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish

Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

*Douglas Fir Available from Caldwell, ID Facility Only

30SA line drawing

 Model# Weight Description

35SA-10 893# 77″ x 10′ Single Axle Utility Trailer

35SA-12 983# 77″ x 12′ Single Axle Utility Trailer

35SA-14 1,073# 77″ x 14′ Single Axle Utility Trailer

Dimensions

Length A B C

8’ 97-1/2” 61” 36-1/2”

10’ 121-1/2” 73” 48-1/2”

12’ 145-1/2” 85” 60-1/2”

14’ 169-1/2” 97” 72-1/2”

 Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Popular Options

POPULAR OPTIONS

Category Description Details

COUPLERS 2″ Forged Coupler

BRAKES Electric Brakes w/ Complete Brake-Away Kit

JACKS 2,000# Fold-Up Jack

JACKS Set Back Jack

TIRE/WHEEL Spare Tire Mount (Side)

TIRE/WHEEL Spare Tire & Wheel (ST205/75R-15 LR-C)

RAMPS 4′ Tall Rear Rampgate (30SA)

RAMPS 4′ Tall Rear Rampgate (35SA)

RAMPS 5′ Tall Rear Rampgate (30SA)

RAMPS 5′ Tall Rear Rampgate (35SA)

RAMPS Gas Shock Assist Option for Rampgate

RAMPS 4′ Slide-In Ramp Package (35SA Only)

BODY Car Hauler Style (No Side Rails)

BODY V-Tongue Tilt Option

BODY Enclose Sides w/ Expanded Metal (Per Square Foot)

BODY Enclose Sides w/ Sheet Metal (Per Square Foot)

BODY 2′ High Sides (Open)

BODY 3’ High Sides (Open)

BODY 4’ High Sides (Open)

CARGO CONTROL Tie Down Pockets (Each)

CARGO CONTROL Additional Tie Loops (Each)
