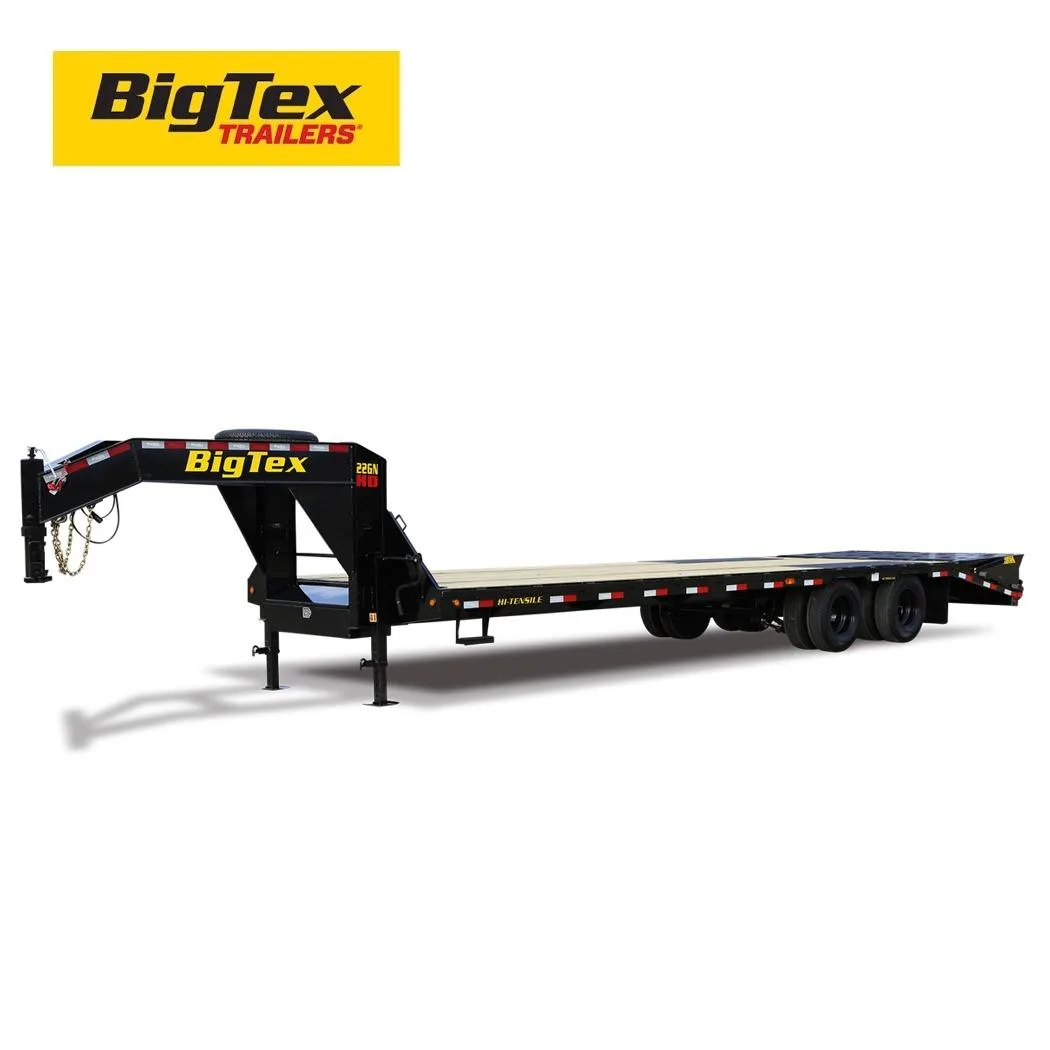

BIG TEX 22GN HD – 8.5 ft Wide 23900 LB. GVWR Economy Dual Wheel

Call for price

Brand: Big Tex Trailers

Description

BIG TEX 22GN HD – 8.5 ft Wide 23900 LB. GVWR Economy Dual Wheel

The 22GN HD from Big Tex Trailers is simply the best value in Gooseneck flatbed trailers. This unit features a low profile pierced beam frame standard, LED lights, dual jacks, chain box, crank style adjustable coupler, and many other great features in addition to the Big Tex Exclusive HD Adjustable Suspension System. This trailer is great for hauling backhoes, dozers, tractors, hay, and many other applications.

Model(s): 22GN20+5, 22GN25+5, 22GN28+5, 22GN30+5, 22GN32+5, 22GN35+5, 22GN36, 22GN40

Available Sizes: 8.5X20+5, 8.5X25+5, 8.5X28+5, 8.5X32+5, 8.5X35+5, 8.5X36, 8.5X40

Call or Stop by your local Truck’n America today!



Features

FEATURES

2-5/16” Ball Adjustable Coupler- Square Crank Type

Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle

102” Overall Width

Low Profile Bed, Pierced- Beam Frame

Lockable Toolbox Between GN Uprights

(2) Side Bed Steps & Handles

3/8” Heavy Duty Rub Rail

Tie Down Pockets Along Sides, 24” On Center

1-1/4” Pipe Chain Spools Between Tie Down Pockets

Dexter Brand Axles

Oil Bath Hubs

Forward Self Adjusting Brakes

Heavy Duty 30,000# Adjustable Suspension by Dexter Axle

Torque Tube Standard on 28’ (Flat Deck) & Longer

Cambered Axles

Grommet Mount Sealed Lighting

L.E.D. Lighting Package

Modular Sealed Wiring Harness

Spare Tire Mount (Top of Neck)

5’ Dovetail w/ 5’ Double Hinged Spring Assist Flip-Over Ramps

Complete Break-A-Way System w/Charger

Radial Tires

Mudflaps

Spare Tire & Wheel- Standard Equipped

Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Specifications

SPECIFICATIONS

G.V.W.R. 23,900#

G.A.W.R. (Ea. Axle) 10,000#

Coupler 2-5/16” Ball Adj. Square Crank Type

Safety Chains 3/8” Grd. 70 w/Safety Latch Hook (2 each)

Jacks Dual 12,000# Drop Leg Jacks (Bolted On)

Neck 12″ I-Beam, 16#

Top Rail None

Frame 12″ I-Beam, 16#

Crossmembers 3” Channel

Side Rails 6” Channel w/Rub Rail, Tie Down Pockets on 24” Centers, and Chain Spools

Axles (2) 10,000# Dual Wheel w/ Electric Brakes (Oil Bath)

Suspension Heavy Duty 30,000# Adjustable

Tire ST235/80 R-16 Load Range E Dual

Wheel 16″ x 6″; Dual Wheel 8 Bolt

Floor 2″ Treated Pine or Douglas Fir*

Lights LED D.O.T. Stop, Tail, Turn, & Clearance

Elec. Plug 7-Way RV

Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish

Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

*Douglas Fir Available from Caldwell, ID Facility Only

Model# Weight Description

22GN-20+5 5,800# 102” x 20’ + 5’ Tandem Dual Wheel Gooseneck

22GN-25+5 6,300# 102” x 25’ + 5’ Tandem Dual Wheel Gooseneck

22GN-28+5 6,900# 102” x 28’ + 5’ Tandem Dual Wheel Gooseneck

22GN-30+5 7,200# 102” x 30’ + 5’ Tandem Dual Wheel Gooseneck

22GN-32+5 7,500# 102” x 32’ + 5’ Tandem Dual Wheel Gooseneck

22GN-35+5 7,950# 102” x 35’ + 5’ Tandem Dual Wheel Gooseneck

22GN-36 7,200# 102” x 36’ Tandem Dual Wheel Gooseneck (Straight)

22GN-40 7,800# 102” x 40’ Tandem Dual Wheel Gooseneck (Straight)

Dimensions w/Dovetail

Length A B C

20 + 5 240” 186” 54”

25 + 5 300” 240” 60”

28 + 5 336” 264” 72”

30 + 5 360” 280” 80”

32 + 5 384” 296” 88”

35 + 5 420” 320” 100”

36 432” 288” 144”

40 480” 320” 160”

*Weights shown are for base models without options and are estimates only.

 Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Popular Options

POPULAR OPTIONS

Category Description Details

JACKS Dual 2-Speed Landing Gear

JACKS Dual Electric Over Hydraulic Jacks

BRAKES Electric Over Hydraulic Brakes (Drum)

BRAKES Electric Over Hydraulic Brakes (Disc)

TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G Dual)

TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G Dual)

RAMPS (2) 5′ MEGA Ramps Details

RAMPS 5’ Center Pop-Up Dovetail w/ (2) 5’ Flip-Over Ramps Details

RAMPS (3) 5′ Flip-Over Ramps w/Diamond Plate on Bottom Details

RAMPS No Dovetail Option (Delete’s Dovetail & Ramps) Details

RAMPS 8′ Rear Slide-In Ramps (Straight Deck Only)

BODY Removable Deck on the Neck- Bolt On (8′ W x 6′ L) Details

CARGO CONTROL Low Profile Tool Box 15” x 15” x 36” (Side Mount)

CARGO CONTROL Sliding Winch Track (Per 6′ Section) Details

CARGO CONTROL 4″ Sliding Winch (Each) Details

CARGO CONTROL 4″ Weld-On Winch (Each)

CARGO CONTROL 4″ x 30′ Strap (Each)

CARGO CONTROL B 40 5/8” D-Ring (Each)
