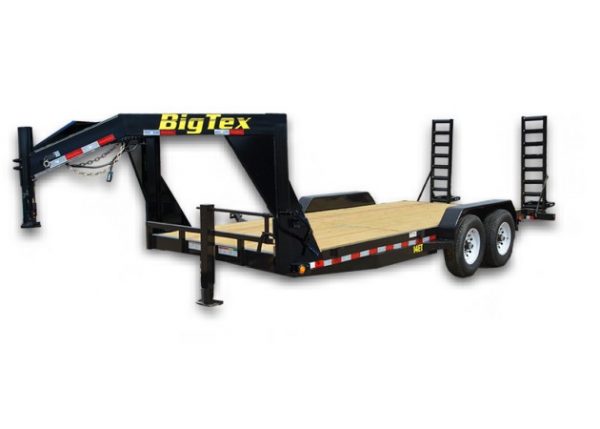

BIG TEX 14ETGN – 7 ft Wide 14000 LB. GVWR Pro Series LoPro

Call for price

Brand: Big Tex Trailers

Description

BIG TEX 14ETGN – 7 ft Wide 14000 LB. GVWR Pro Series LoPro

The 14ET Tandem Axle Equipment Trailer from Big Tex Trailers has length options and flush floor that provide versatility to haul light to medium duty equipment and small tractors. 7,000# axles give the 14ET added weight capacity.

Model(s): 14ET-20-GN, 14ET-22-GN, 14ET-24-GN

Available Sizes: 7×20′, 7×22′, 7×24′

Call or Stop by your local Truck’n America today!



Features

FEATURES

Rubrail and Tie Down Pockets Along Sides NEW!

32” Wood Filled Dovetail

5’ Tall Channel Stand Up Ramps

Adjustable 2-5/16” 14,000# Cast Coupler

Fold Back/Wrap Tongue (14’ & Longer)

12,000# Drop Leg Jack- Side Wind Against Bed

2” Tubular Stop Rail

EZ Lube Hubs

Dexter Brand Axles

Nev-R-Adjust Electric Brakes on All Hubs

Cambered Axles

Double Broke Diamond Plate Fenders

(Removable)

Grommet Mount Sealed Lighting

L.E.D. Lighting Package

Sealed Modular Wiring Harness

Spare Tire Mount (Front)

Complete Break-A-Way System w/Charger

Radial Tires

Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Specifications

SPECIFICATIONS

G.V.W.R. 14,000#

G.A.W.R. (Ea. Axle) 7,000#

Coupler Adjustable 2-5/16” 14,000# Cast

Safety Chains 3/8” Grd. 70 w/Safety Latch Hook (2 each)

Jack 12,000# Drop Leg Jack-Side Wind

Tongue 6” Channel Fold Back/Wrap, 10″ I-Beam on GN

Front Stop Rail 2″ Tubing

Frame 6” Channel

Crossmembers 3” Channel on 16” Centers

Uprights None

Fenders 9” x 72” Double Broke Diamond Plate w/Back (Removable)

Axles (2) 7,000# EZ Lube w/Electric Brakes

Suspension Multi-Leaf Spring w/Equalizer

Tire ST235/80 R-16 Load Range E

Wheel 16″ x 6″; Heavy White Mod 8 Bolt

Floor 2″ Treated Pine or Douglas Fir*

Lights LED D.O.T. Stop, Tail, Turn, & Clearance

Elec. Plug 7-Way RV

Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish

Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

*Douglas Fir Available from Caldwell, ID Facility Only

 Model# Weight Description

14ET-20 GN 3,740# 83” x 20’ Tandem Axle Equipment Trailer – Gooseneck

14ET-22 GN 3,940# 83” x 22’ Tandem Axle Equipment Trailer – Gooseneck

14ET-24 GN 4,140# 83” x 24’ Tandem Axle Equipment Trailer – Gooseneck

Dimensions

Length A B C

16’ 193-1/2” 115” 78-1/2”

18’ 217-1/2” 127” 90-1/2”

20’ 240” 138” 102”

 Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Popular Options

POPULAR OPTIONS

Category Description

COUPLERS Adjustable Pintle in Channel in Lieu of Coupler

BRAKES Hydraulic Surge Brakes 2 Axles w/Adjustable Demco Actuator

TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)

TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G)

TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G)

RAMPS 4’ Side Mount Slide In Ramps (Existing Dovetail)

RAMPS 5’ Rear Slide In Ramps (Existing Dovetail)

RAMPS 5’ Rear Slide In Ramps (Straight Deck w/ Stabilizers)

RAMPS 3’ Self Cleaning Dovetail w/ 20” W, 3’ Knee Ramps (Not Avaialbe on GN)

RAMPS 3’ Self Cleaning Dovetail w/ 3’ Mega Ramps (Not Avaialbe on GN)

BODY 1/8” Diamond Plate Steel Floor (Per Square Foot)

CARGO CONTROL Recessed D-Ring in Floor (Steel Floor Only)

CARGO CONTROL B40 5/8” D-Ring (Each)
