Description

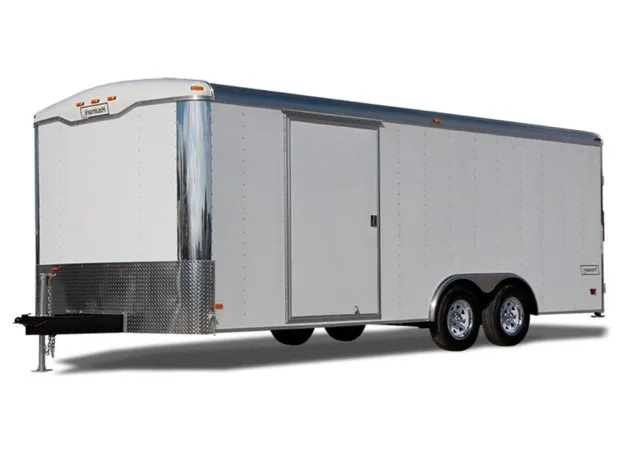

HAULMARK Transport Deluxe – 8.5 ft Wide Tandem Axle – 7000 & 10000 LB. Round Top Cargo Trailer
One word says it all . . . DELUXE. Only Haulmark could build a car trailer with so much value. We took what was already an impressively equipped trailer and loaded it with our most popular options. From a stronger frame, to a smoother ride, to a tricked out interior, to a head-turner exterior, no one does “deluxe” like Haulmark!
The Transport Auto DELUXE models with tandem 3,500 lb. axles (7,000 lb. GVWR) or tandem 5,200 lb. axles (10,000 lb. GVWR) includes an impressive package of our most popular options. Available in lengths ranging from 16′ to 24′.
Model(s): TST8.5X16TA, TST8.5X18TA, TST8.5X20TA, TST8.5X24TA
Available Sizes: 8.5×16′, 8.5×18′, 8.5×20′, 8.5×24′
Call or Stop by your local Truck’n America today!
Features
FEATURES
Tires:
7000 GVWR: 15″ Radial Tires ST205/75R15 C Rated (5-Bolt)
10,000 GVWR: 15″ Radial Tires ST225/75R15 D Rated (6-Bolt)
Features: The Transport Auto DELUXE features all the standard equipment available on the BASE version with the addition of the following:
Torflex Axles
Wider Side Entry Door (48″W x72″H)
16″ OC Crossmembers
16″ OC Roof Bows
White Vinyl Ceiling Liner
White Vinyl Sidewall Liner
ABS Chrome Hub Covers
Chrome Wheel Trim Rings
Chrome Front Corners
Chrome Rear Hoop (Rear Corners/Rear Header)
12V Cargo Light
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
Specifications
SPECIFICATIONS
Coupler Type
2 5/16 – 10,000 lb.
Frame Construction
Tube Main Rails: 2″ x 6″
Nose Type
Radius Front / Radius Roof with TPO Front Cap (White, Black or Red)
Length
16′, 18′, 20′, 22′ and 24′
Width
Body Width: 8’4″
Overall Width: 8’6″
Floor
3/4″ DryMax High-Performance Flooring
Axles
Quantity: Tandem
Type: Torflex Rubber Torsion Suspension (4″ Drop)
GVWR: 7000 lb. and 10,000 lb. GVWR
E-Z Lube Hubs
Wheels: White Spoke
Tie Downs
5000 lb. D-Ring Tie-Dows (4)
Side Door
Standard: Pass-Thru Side Entry Door: 48″ x 72″
Aluminum Frame
Extruded Hinges with Stainless Steel Bushing and Full-Length Pin
Chrome Flush Lock with Dead Bolt
Ramp
Rear Ramp Door with Spring Assist
Standard Dimensions: 94″W x 75″H
Color Options
.030 Prefinished Aluminum Exterior Skin
Available in 12 colors
Warranty
3-Year Limited Warranty
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
