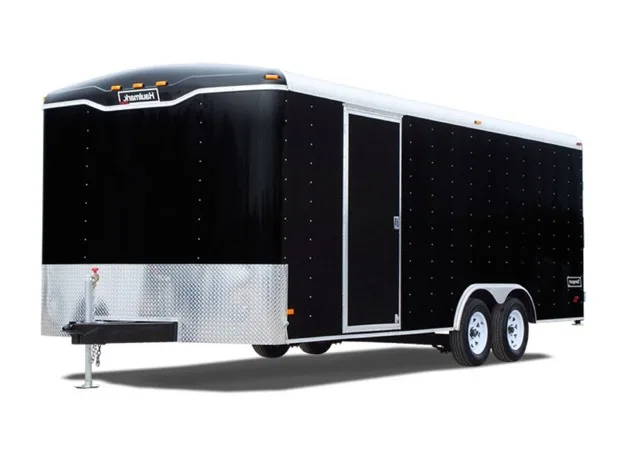

HAULMARK Transport – 8.5 ft Wide Tandem Axle – 7000 & 10000 LB. Round Top Cargo Trailer
Transport Auto series is Haulmark’s classic auto hauler outfitted with a radius front and round top. Whether you are racing your Super Stock for a living, or showing off your Corvette at a regional car show for fun, it’s all about the performance. The Transport Auto’s round top gives you the water-shedding all-weather performance you need, while its spring suspension gives you world-class ride quality. The reinforced center-draw bar means that you can tow your classic with confidence, whether it is behind your dually, or your prized RV. Standard features include our TPO front cap, a one-piece aluminum roof with no seams, .080 aluminum top edge wrap, and a full 94″ wide rear ramp door. Add the Deluxe Package to get a full assortment of frame, interior and exterior upgrades.
The Transport Auto series is Haulmark’s most popular line of car haulers. It’s no wonder since it is loaded with versatility and value. The Transport Auto is the perfect choice for car collectors or racers alike.
Model(s): TST8.5X16TA, TST8.5X18TA, TST8.5X20TA, TST8.5X24TA
Available Sizes: 8.5×16′, 8.5×18′, 8.5×20′, 8.5×24′
Call or Stop by your local Truck’n America today!
Features
FEATURES
Tires:
7000 GVWR: 15″ Radial Tires ST205/75R15 C Rated (5-Bolt)
10,000 GVWR: 15″ Radial Tires ST225/75R15 D Rated (6-Bolt)
Features:
– Radius Roof/Radius Front with TPO Front Cap
– .080 Aluminum Top Wrap
– 3/4″ plywood floor (undercoated)
– 3/8″ DryMax High Performance Sidewalls
– 16″ OC Vertical Posts
– 24″ OC Crossmembers and Roof Bows
– 36″ Pass-Thru Side Door with Flush Lock and Dead Bolt
– Recessed Step at Side Door
– 1-Piece Aluminum Roof
– 12V Domes Lights with Wall Switch
– 24″ ATP Stoneguard
– E-Z Lube Hubs
– LED Slim Line Tail Lights
– Drop Down Stabilizer Jacks
-14″ x 14″ Non-Powered Roof Vent
– SureWire – Improved wire connections & secure routing reduces electrical shorts
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
Specifications
SPECIFICATIONS
Coupler Type
2 5/16 – 10,000 lb.
Frame Construction
Tube Main Rails: 2″ x 6″
Nose Type
Radius Front / Radius Roof with TPO Front Cap (White, Black or Red)
Length
16′, 18′, 20′, 22′ and 24′
Width
Body Width: 8’4″
Overall Width: 8’6″
Floor
3/4″ DryMax High-Performance Flooring
Axles
Quantity: Tandem
Type: Spring Suspension (4″ Drop)
GVWR: 7000 lb. and 10,000 lb. GVWR
E-Z Lube Hubs
Wheels: White Spoke
Tie Downs
5000 lb. D-Ring Tie-Dows (4)
Side Door
Standard: Pass-Thru Side Entry Door: 36″ x 72″
Aluminum Frame
Extruded Hinges with Stainless Steel Bushing and Full-Length Pin
Chrome Flush Lock with Dead Bolt
Ramp
Rear Ramp Door with Spring Assist
Standard Dimensions: 94″W x 75″H
Color Options
.030 Prefinished Aluminum Exterior Skin
Available in 12 colors
Warranty
3-Year Limited Warranty
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
