BIG TEX 10DM – 7 ft Wide 10000 LB. GVWR Pro Series Diamond Plate Deck

Call for price

Brand: Big Tex Trailers

Description

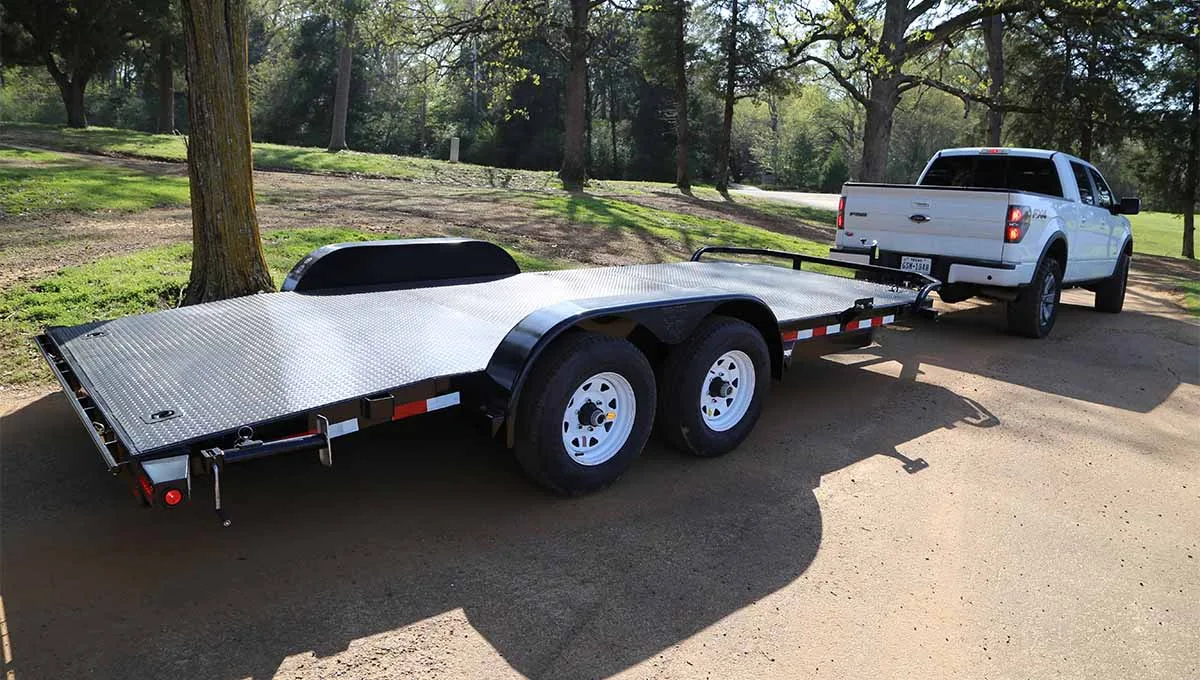

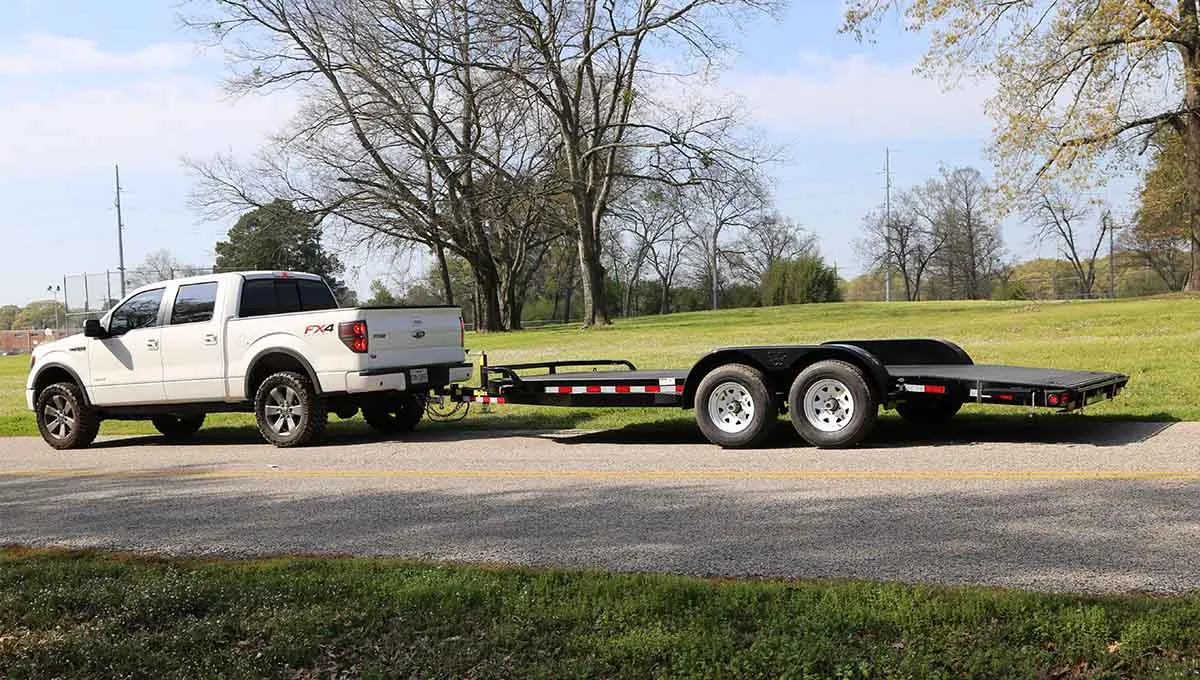

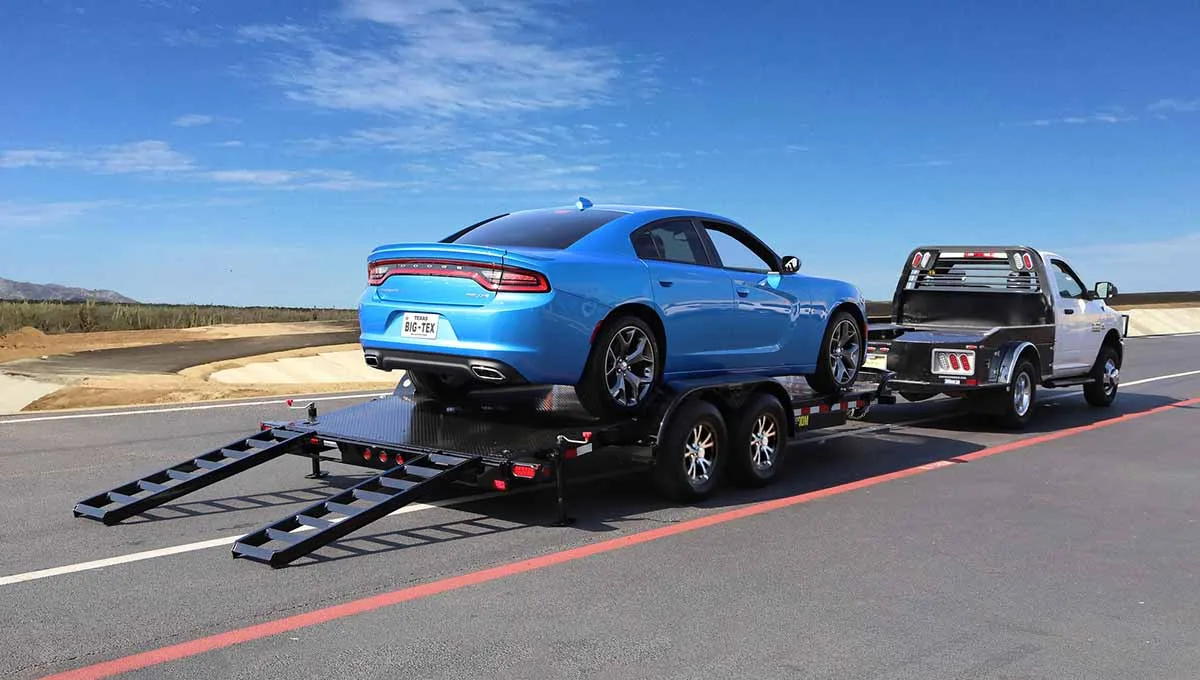

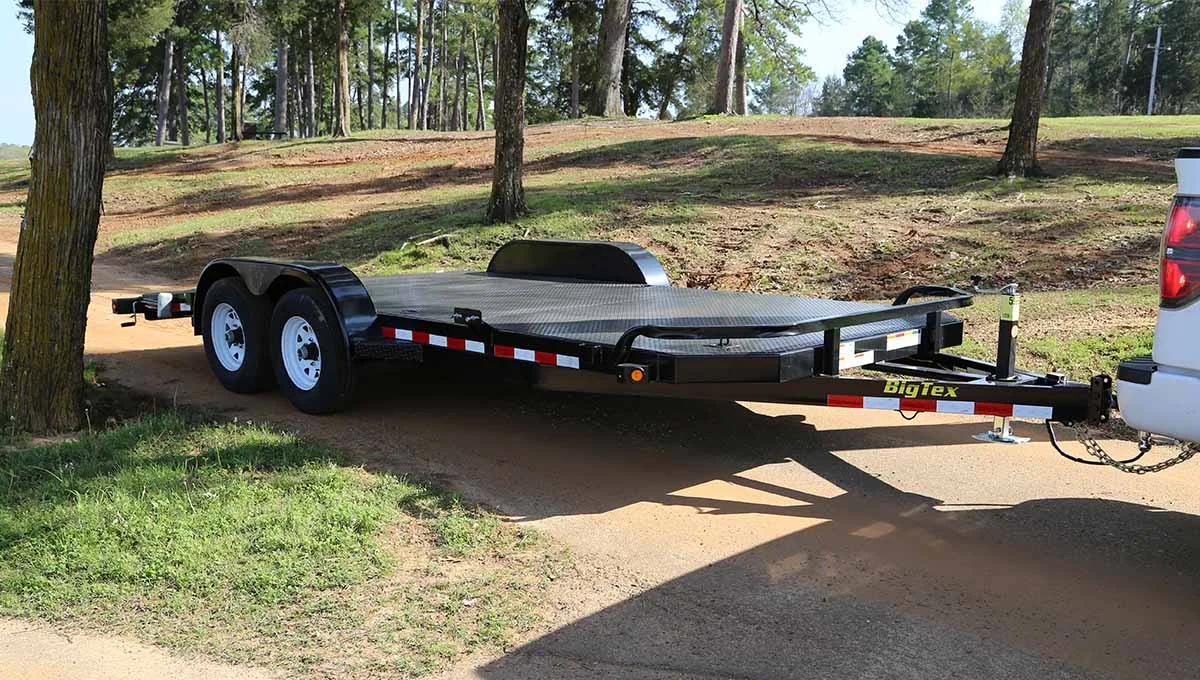

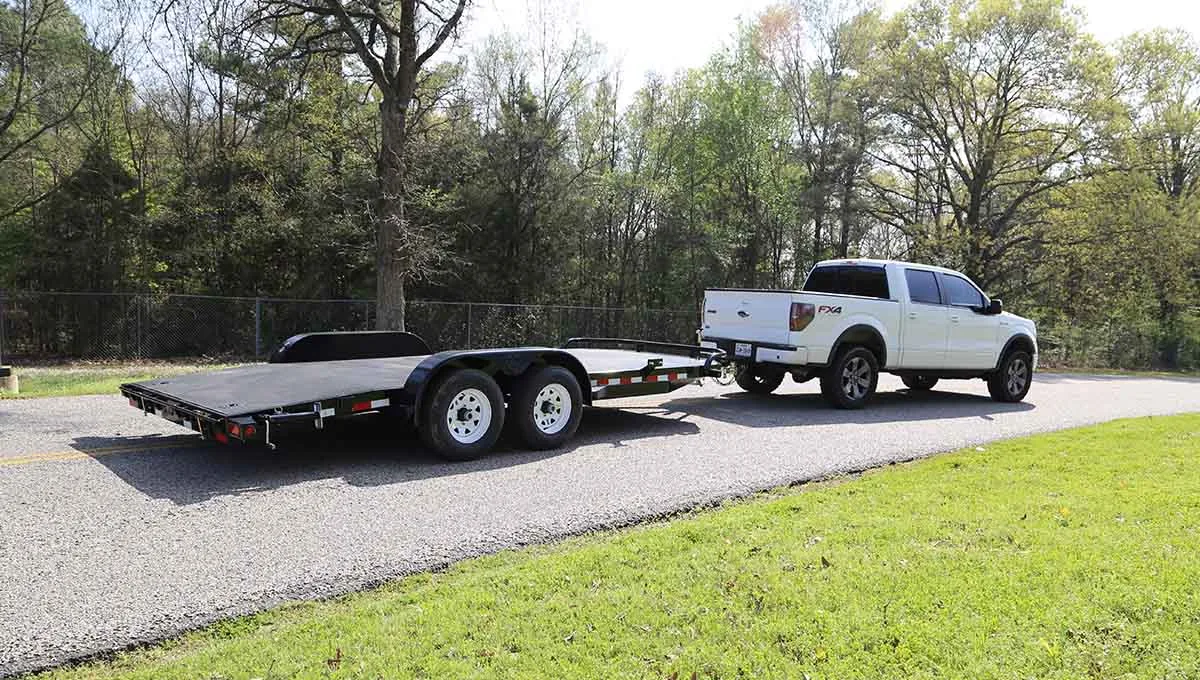

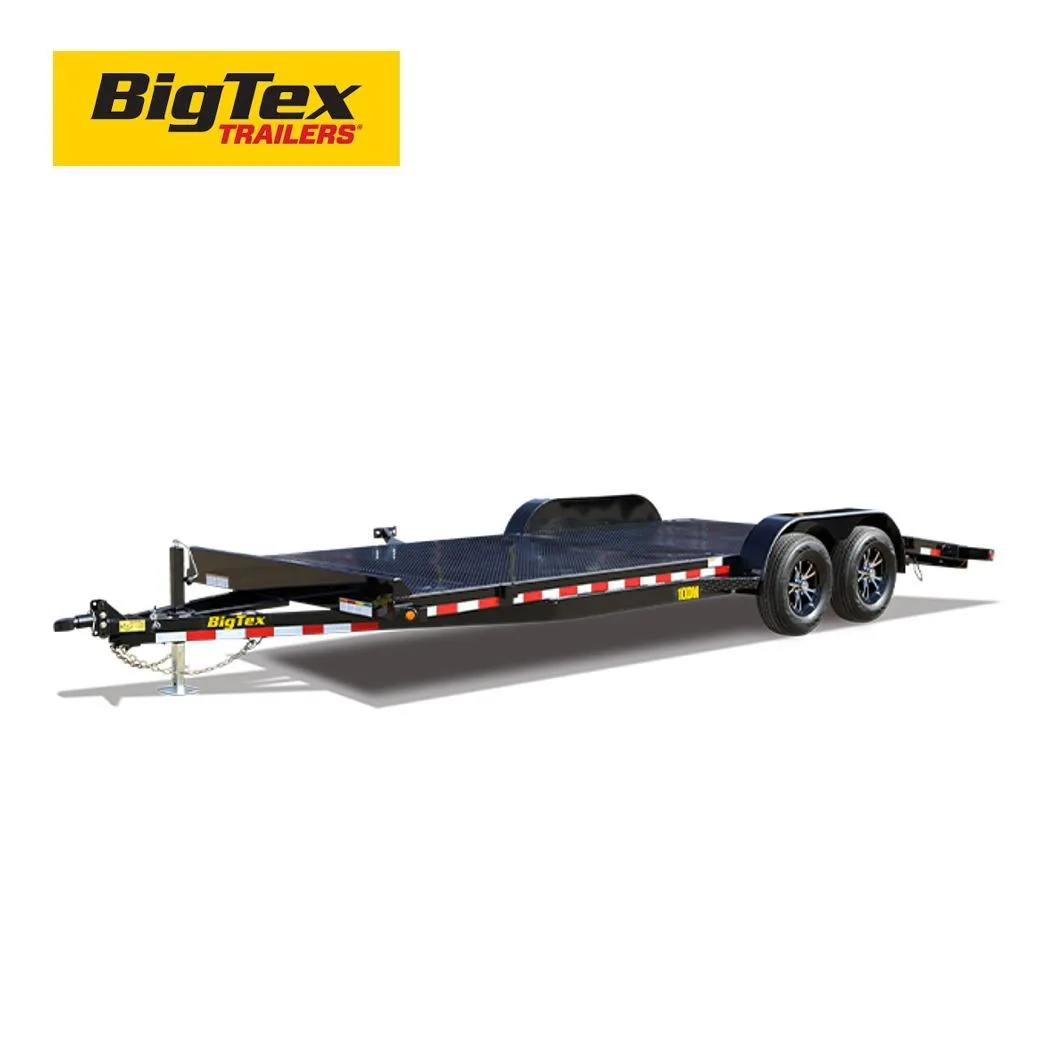

BIG TEX 10DM – 7 ft Wide 10000 LB. GVWR Pro Series Diamond Plate Deck

The 10DM from Big Tex Trailers gives the consumer many of the same great features that the 70DM does, but with a larger GVWR & cargo capacity.

Model(s): 10dm-18, 10dm-20, 10dm-22

Available Sizes: 7 x 18′, 7 x 20′, 7 x 22′

Call or Stop by your local Truck’n America today!



Features

FEATURES

Tie Down Pockets Along Sides & Front

Adjustable, 2 5/16” Forged Coupler

Fold Back/Wrap Tongue

7,000# Drop Leg Jack – Top Wind

EZ Lube Hubs

Dexter Brand Axles

Nev-R-Adjust Electric Brakes

Cambered Axles

Chamfered Front w/ Formed 2” Stop Rail

1/8” Diamond Plate Floor w/ (4) Recessed D-Rings

Dovetail

5’ Rear Slide-In Channel Ramps

Rear Stabilizers

Removable Tear Drop Style Fenders

Grommet Mount Sealed Lighting

L.E.D. Lighting Package

Protected Wiring

Complete Break-A-Way System w/Charger

Spare Tire Mount- Standard Equipped

Radial Tires

Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Specifications

SPECIFICATIONS

G.V.W.R. 9,990#

G.A.W.R. (Ea. Axle) 5,080#

Coupler Adjustable Forged 2-5/16”

Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)

Jack 7K Drop Leg – Top Wind (Bolted On)

Tongue 5” Channel Fold Back/Wrap

Front Stop Rail Single-Piece Formed 2” Tubing

Frame 5” x 2” x .188” Rectangular Tubing

Crossmembers 3” Channel

Uprights None

Fenders 9” x 72” Tear Drop w/Back (Bolted On)

Axles (2) 5,200# EZ Lube w/Electric Brakes

Suspension Multi-Leaf Spring w/Equalizer

Tire ST225/75R-15 Load Range D

Wheel 15” x 6” White Spoke 6 Bolt

Floor 1/8” Diamond Plate

Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Elec. Plug 7-Way RV

Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish

Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

10DM line drawing

Model# Weight Description

10DM-18 2,480# 83” x 18’ Pro Series Tandem Axle Premium Car Hauler

10DM-20 2,630# 83” x 20’ Pro Series Tandem Axle Premium Car Hauler

10DM-22 2,790# 83” x 22’ Pro Series Tandem Axle Premium Car Hauler

Dimensions

Length A B C

18′ 218″ 132” 86”

20′ 240″ 150” 90”

22′ 264″ 156” 108”

*Weights shown are for base models without options and are estimates only.

*Weights shown are for base models without options and are estimates only.te. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Popular Options

POPULAR OPTIONS

Category Description

COUPLERS Adjustable Pintle in Channel in Lieu of Coupler

JACKS 12,000# Drop Leg Jack – Top Wind

JACKS 12,000# Drop Leg Jack – Side Wind Against Bed

BRAKES Hydraulic Surge Brakes 2 Axles w/Adjustable Demco Actuator

TIRE/WHEEL Spare Tire (ST225/75 R-15 LR-D)

TIRE/WHEEL Tire Upgrade (ST235/80 R-16 LR-E)

TIRE/WHEEL Spare Tire Upgrade (ST235/80 R-16 LR-E)

BODY Front Rockshield (Steel)

BODY Front Rockshield (Aluminum Tread Brite)

CARGO CONTROL A-Frame Tongue Box (Steel)

CARGO CONTROL A-Frame Tongue Box (Aluminum Tread Brite)

CARGO CONTROL Additional Recessed D-Rings in Floor
