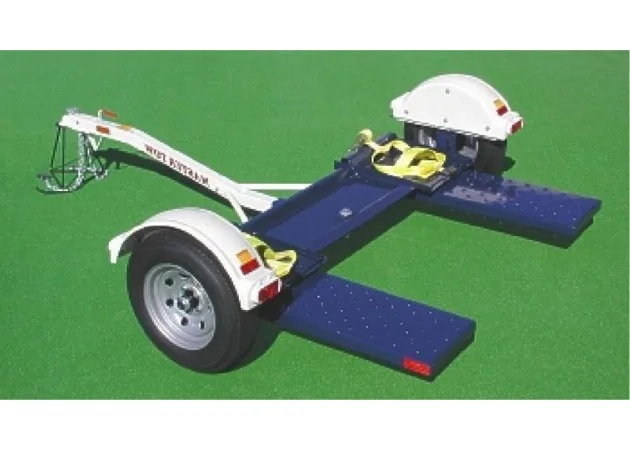

MASTER TOW 80THD Car Dolly
For towing small to full-size cars, vans & trucks.
Max towed vehicle gross wt 4.750 lbs.
(towed vehicle tread width 40” – 80”)
Features
MASTER TOW 80THD
We use easy-lube hubs which ease the repacking of wheel bearings by eliminating the need for disassembly, and are backed by a 1-year warranty.
All of our dollies are equipped with new tires and wheels that are computer balanced to assure a smooth ride at all towing speeds.
Our ramps and carrying pan tilt rearward for loading and feature a raised tread grip pattern that gives extra traction making the Tilt-Bed Loading safer and easier.
Our fenders are molded of ¼” thick polyethylene which eliminates metal fatigue problems common with steel fenders, and they will not scratch or rust. They feature oval waterproof lights that are mounted with an exclusive light retainer system to insure their secure attachment.
The carrying pan steers for your car by swiveling smoothly on polyethylene pads which are maintenance free.
Both safety chains have a unique s-hook safety closure added to insure their secure attachment to the tow vehicle at all times.
A factory molded plug-together wiring harness is used to eliminate the need for wire splices which often corrode and lead to wiring shorts. It is also poly loomed where exposed and carefully routed outside the fender well to prevent wires from being damaged by debris thrown up from the tire.
We use an exclusive painting process which involves chemically cleansing and etching the bare metal before applying a durable powder coat finish. This extra effort keeps our dollies looking better longer.
10,000 pound rated ratchets and adjustable straps securely fasten most 13” through 16” tires and wheels.
Every Master Tow dolly is backed by a 1-year written warranty to show our commitment to quality.
Specifications
Model 80THD
Vehicle Tread Width 40” – 80”
Max Width at Front Doors 78”
Overall Width 102”
Overall Length 121.5”
Height at Fender 26”
Ground Clearance 6.0”
Weight 551 lbs.
Tow Dolly Gross Vehicle 3,500 lbs.
Weight Rating
Actual Cargo Capacity 2,950 lbs.
Maximum Gross Weight of Vehicle to be Towed 4,900 lbs.
Tire Size (Trailer Service) ST 205/75D 14″ 6 Ply Rated
Coupler Size 2”
Coupler Class SAE 3 / 5,000 lbs.
