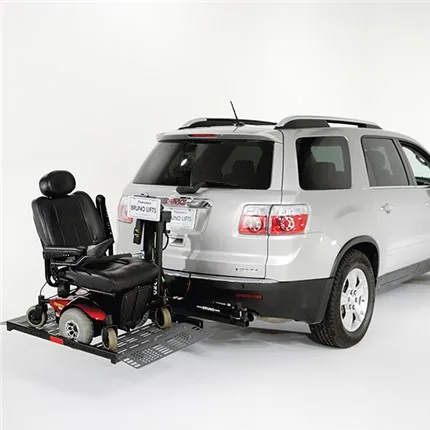

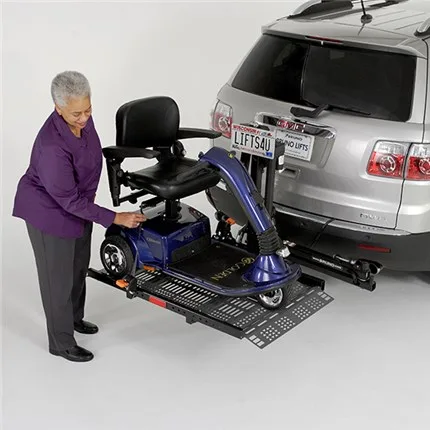

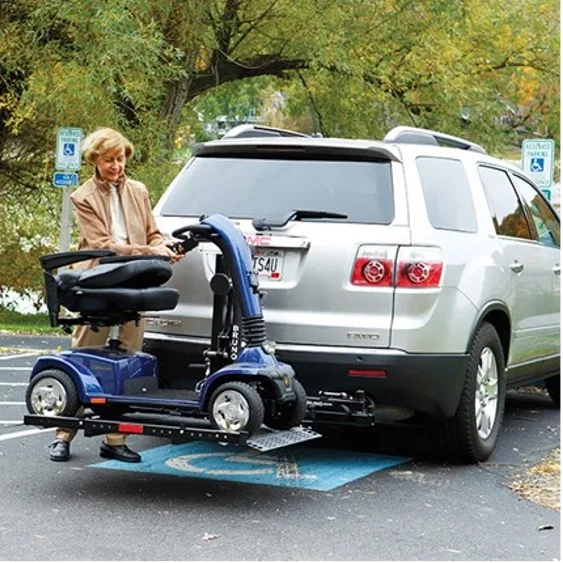

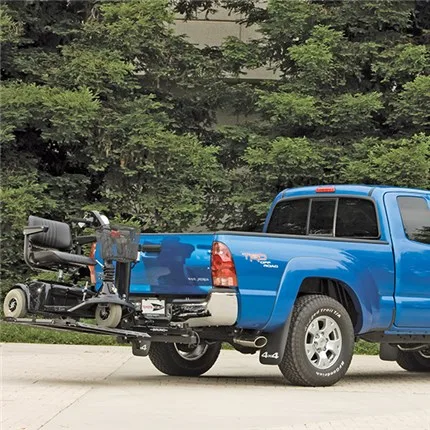

BRUNO Out-Sider ASL-250A/B & ASLHTP – Exterior Scooter & Powerchair Lift & Carrier
Model ASL-250A/B & ASLHTP
Keep all of your vehicle’s interior space for seating and cargo when you transport your scooter or powerchair with Bruno’s Out-Sider exterior lift. It’s durable, safe and reliable. For mid-wheel drive powerchair users, consider Bruno’s ultra-sleek Out-Sider MWD platform version geared specifically for you. Easily gain access to cargo space by adding the “Swing-Away” option. The Out-Sider is available for nearly every type of vehicle.
Made in the USA
Call or Stop by your local Truck’n America today!
Features
Highlights
Fully powered, single-button operation

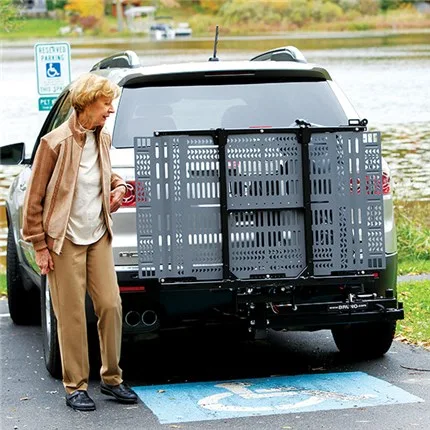

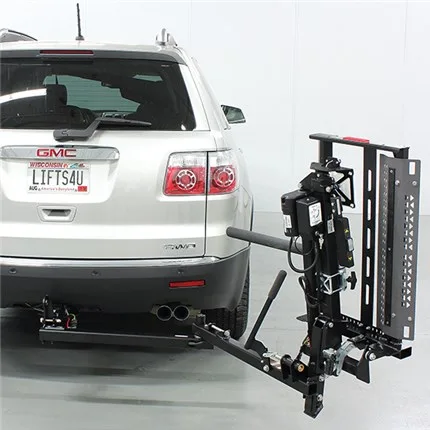

Automatic folding platform when not in use
Easy drive on/off platform with traction coating
No scooter or powerchair modifications
Reliable, easy-to-use mobility device securement
Low profile design for rear view mirror visibility
Integrated safety latch to prevent unintentional lowering
Lighted license plate holder
Manual backup for peace of mind
Potential to reinstall in another applicable vehicle
Eligible for auto manufacturer potential rebates
All sales, installation and service provided by factory-authorized Bruno Dealer
Discover how Bruno Valet Signature Seating can complement your Out-Sider lift
User Requirements
Walk from front to rear of vehicle and vice versa
Stand for two to three minutes
Drive mobility device on/off platform
Hold down a button on control arm
Hold-Tite arm securement: one-hand operation to release and swing arm into position
3-belt securement: lean over to hold release lever, connect hook to receiver on scooter or powerchair
Swing-Away: lean over to release lever and swing lift away from rear of vehicle
Specifications
Out-Sider ASL 250A: scooters
Lift capacity: 350 lbs/159 kg
Vehicle compatibility: Go to MobilityMatcher
Max mobility device wheelbase: 37 in/94 cm
Max mobility device width: 28 in/71 cm
Installed weight w/o Swing-Away: 107 lbs/49 kgs
Installed weight w/Swing-Away: 144 lbs/65 kg
Mobility device securement: Hold-Tite foot
Hitch class: II or III (receiver hitch needed)
3-year limited warranty
Out-Sider ASL 250B: scooters or powerchairs
Lift capacity: 350 lbs/159 kg
Vehicle compatibility: Go to MobilityMatcher
Max mobility device wheelbase: 37 in/94 cm
Max mobility device width: 28 in/71 cm
Installed weight w/o Swing-Away: 105 lbs/48 kgs
Installed weight w/Swing-Away: 142 lbs/64 kg
Mobility device securement: retractable self-tensioning belts with one-hand operation
Hitch class: II or III (receiver hitch needed)
3-year limited warranty
Out-Sider ASL 250 HTP: powerchairs
Lift capacity: 350 lbs/159 kg
Vehicle compatibility: Go to MobilityMatcher
Max mobility device width: 28 in/71 cm
Installed weight w/o Swing-Away: 110 lbs/50 kgs
Installed weight w/Swing-Away: 147 lbs/65 kg
Mobility device securement: Hold-Tite arm
Hitch class: II or III (receiver hitch needed)
3-year limited warranty
