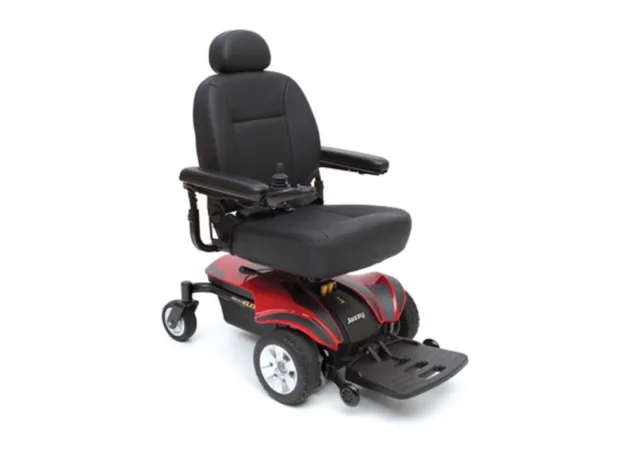

PRIDE Jazzy Elite – Power Chair
The Jazzy Select® Elite delivers a potent blend of power, performance and style. In-line, front-wheel drive technology gives the Elite excellent stability and maneuverability for solid performance indoors and out.
Jazzy® Armor® includes shroud and controller guards to protect against daily wear and tear
Red or blue color-through shroud
Black high-back seat with removable, replaceable back and seat covers
Dual-layer powder coated frame for increased durability
Larger foot platform
40 amp, PG GC 3 controller
Built with ease of service in mind
Extended 13-month limited warranty
Model Jazzy Select Elite
Weight Capacity 300 lbs.
Turning Radius1 24.75″
Maximum Speed3 Up to 4 mph
Ground Clearance1 1.5″
Front Wheels 3″ solid anti-tips
Drive Wheels 9″ solid
Rear Wheels 6″ solid casters
Drivetrain Two-motor, in-line, front-wheel drive
Braking System Regenerative and electro-mechanical
Suspension Type Limited
High-Back Seat (max. size) 20″W x 20″D
High-Back Seat-to-Floor Range 21.5″ – 23.5″
Specialty Seating (max. size) 20″W x 20″D
Specialty Seat-to-Floor Range 16.5″ – 18.5″
Synergy® Seating 20″W x 20″D
Synergy® Seat-to-Floor Range 17.25″ – 19.25″
Standard Electronics 40A, PG GC3
Battery Size (2 required) 12 volt, U-1
Standard Battery Charger 3A, off-board
Per-Charge Range3,11 Up to 15 miles
Battery Weight9 24.5 lbs. each
Weight of Heaviest Piece5 68.5 lbs.
Standard Seat Weight 43 lbs. (comfort, high-back)
Standard Seat Size 18″ x 18″-20″
Medicare Code Coverage Group 2: Standard (K0822/K0823)
Warranty 5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
Notes 1Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2Without front riggings.
3Varies with user weight, terrain, battery type, battery condition and tire pressure.
5Does not include seat or battery weights.
9Battery weight may vary based on manufacturer.
11Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
