Model

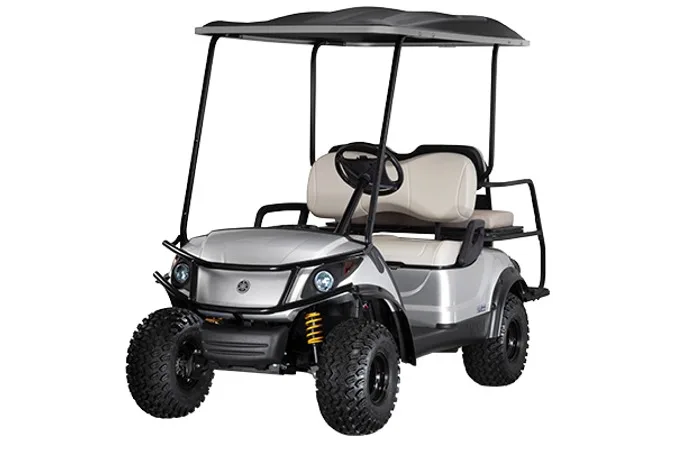

Adventurer 2+2 (Gas)
Measurements
Length
108.9 in. (2,765 mm) overall
Height
50 in. (1,270 mm) overall
14.4 in. (365 mm) floor board
Width
50.9 in. (1,294 mm) overall
Weight
905 lbs. (411 kg) dry
1,703 lbs. (773 kg) GVW
Wheelbase
64.7 in. (1,643 mm)
Ground Clearance
5.5 in. (140 mm) minimum
Turning Radius
9.8 ft. (3 m)
Engine
Engine
Yamaha built, low-emission, 1-cylinder, 60° incline, OHV, forced-air cooled
Horsepower
11.4 hp (8.5 kW) @ 3,500 rpm
Carburetion
Electronic fuel injection
Ignition
Transistor magneto
Air Filter
2-stage, urethane-foam pre-cleaner and high-capacity pleated paper cartridge
Fuel Tank Capacity
5.8 gal. (22 l)
Lubrication
Splash-style positive oil
Drivetrain
Transmission
Mechanical, 2 rear wheel transaxle
Operational
Steering
Self-compensating double reduction helical rack-and-pinion, permanently lubricated with sealed bearings and greaseless tie-rod ends
Brakes
Self-adjusting rear drum
Suspension
Front: Tru-Trak II™ fully independent automotive-style strut
Rear: Unit swingarm with coil springs over hydraulic shock absorbers
Tires
20 x 10-8 (4-ply rating)
Seating
4 person capacity
Speed
15.5 mph (25 km/h) maximum
Frame
HybriCore™ chassis features a robotic welded automotive ladder-style steel frame mated to a polypropylene structural floor; frame is protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester / urethane powder topcoat
Load Capacity
Flat Bed: 250 lbs. (114 kg)
Total Vehicle: 800 lbs. (363 kg)
Other
Colors
Glacier, Onyx Metallic, Moonstone Metallic, Jasper Metallic, Larimar Metallic
