Description

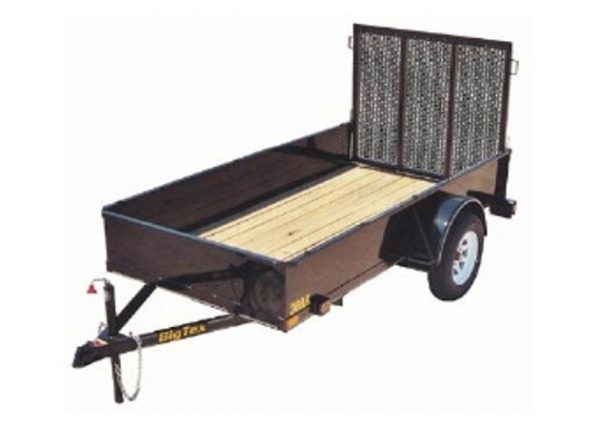

BIG TEX 30AA – 5 ft Wide – 2990 LB. GVWR ALL-AROUND Wood Floor
The 30AA Single Axle All-Around Trailer from Big Tex Trailers has width options that provide versatility to haul just about anything you need for heavy lawn and garden use, which include large mowers and large ATV’s. The solid sides help to secure and protect loads.
Model(s): 30AA-10
Available Sizes: 5 x 10
Call or Stop by your local Truck’n America today!
Features
FEATURES
(4) Tie Down Loops Inside Bed
EZ Lube Hubs
Dexter Brand Axle
14” Solid Formed Steel Side & Front Panels
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Protected Wiring
Lower Support Jack Plate
Radial Tires NEW!
Brake Flanges on Axle for Easy Brake Addition
Removable Sand Foot on Jack
A-Frame Channel Tongue
(4) Tie Down Pockets on Outside of Frame
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
Specifications
SPECIFICATIONS
G.V.W.R. 2,995#
G.A.W.R. 2,995#
Coupler 2” A-Frame
Safety Chains 1/4” Grd. 30 w/Safety Latch Hook (2 each)
Jack 2,000# Top Wind (Bolted On)
Tongue 3” Channel
Sides 14″ Solid Formed (14 Ga.) Side Panels w/ 2″ Lip
Frame 3” x 2” x 3/16” Angle
Crossmembers 3” x 2” x 3/16” Angle
Uprights 3″ x 2″ x 3/16″ Angle
Fenders 9” x 32” Rolled Formed w/Back
Axle 3,500# EZ Lube Axle w/ Brake Flanges
Suspension Multi-Leaf Spring
Tire ST205/75R-15 Load Range C
Wheel 15″ x 5; White Spoke, 5 on 5 Bolt Pattern
Floor 2″ Treated Pine or Douglas Fir*
Lights LED D.O.T. Stop, Tail, Turn, & Clearance
Elec. Plug 4-Way Flat w/Loom
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
*Douglas Fir Available from Caldwell, ID Facility Only

Model# Weight Description
30AA-10 840# 60″ x 10′ Single Axle “All-Around” Utility Trailer
35AA-10 940# 77″ x 10′ Single Axle “All-Around” Utility Trailer
Dimensions
Length A B C
10’ 121-1/2” 73” 48-1/2”
Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.
Popular Options
POPULAR OPTIONS
Category Description
COUPLERS 2″ Forged Coupler
BRAKES Electric Brakes w/ Complete Brake-Away Kit
JACKS 2,000# Fold-Up Jack
JACKS Set Back Jack
TIRE/WHEEL Spare Tire Mount (Side)
TIRE/WHEEL Spare Tire & Wheel (ST205/75R-15 LR-C)
RAMPS 4′ Tall Rear Rampgate for 30AA
RAMPS 4′ Tall Rear Rampgate for 35AA
RAMPS 5′ Tall Rear Rampgate for 30AA
RAMPS 5′ Tall Rear Rampgate for 35AA
RAMPS Gas Shock Assist Option for Rampgate
CARGO CONTROL Additional Tie Down Pockets (Each)
CARGO CONTROL Additional Tie Loops (Each)
