BIG TEX 70LR – 7 ft Wide – 7000 LB. GVWR Tandem Axle Landscape Trailer

Call for price

Brand: Big Tex Trailers

Description

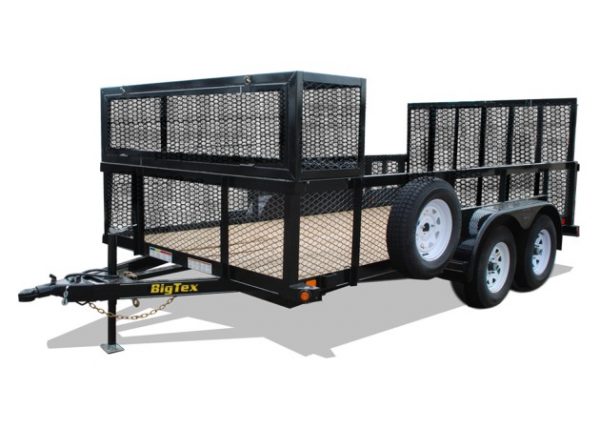

BIG TEX 70LR – 7 ft Wide – 7000 LB. GVWR Tandem Axle Landscape Trailer

The 70LR Tandem Axle Landscape Trailer from Big Tex Trailers comes equipped with tool holders, 2′ expanded metal sides, and a lockable landscape box that make it the perfect landscape trailer for the professional landscaper or gardener. 2′ extensions are so available.

Model(s): 70LR-14, 70LR-16

Available Sizes: 7X14′, 7X16′

Call or Stop by your local Truck’n America today!



Features

FEATURES

(4) Tie Down Loops Inside Bed

(4) Tie Down Pockets on Outside Frame

Forged, 7,000# Coupler

Fold Back/Wrap Tongue (14’ & Longer)

Set-Back Jack

EZ Lube Hubs

Dexter Brand Axles

Nev-R-Adjust Electric Brakes

Cambered Axles

Tear Drop Style Fenders

24” Sides Enclosed with Expanded Metal

Lockable Landscape Box (24” x 24” x 87”) Bolt On

(5) Tool Holders on Rear of Landscape Box

4’ Tall Rear Rampgate- Standard Equipped

Grommet Mount Sealed Lighting

L.E.D. Lighting Package

Protected Wiring

Removable Sand Foot on Jack

Complete Break-A-Way System w/Charger

Radial Tires NEW!

Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Specifications

SPECIFICATIONS

G.V.W.R. 7,000#

G.A.W.R. (Ea. Axle) 3,500#

Coupler 7,000# 2” Forged Coupler

Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 ea)

Jack 2K Top Wind-Set Back (Bolted On)

Tongue 4” Channel Fold Back Tongue

Top Rail 3” x 2” x 3/16” Angle

Frame 4” x 3” x 1/4”

Crossmembers 3” x 2” x 3/16” Angle

Sides 3” x 2” x 3/16” Angle

Fenders 9” x 72” Tear Drop

Axles Two 3,500# EZ Lube w/1 Electric Brake

Suspension Multi-Leaf Spring

Tire ST205/75-15 Load Range C

Wheel 15” x 5”; White Spoke 5 on 5 Bolt Pattern

Floor 2” Pine

Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Elec. Plug 7-Way RV

Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish

Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

70LR line drawing

 Model# Weight Description

70LR-14 2,210# 83” x 14’ Tandem Axle Landscape

70LR-16 2,370# 83” x 16’ Tandem Axle Landscape

Dimensions

Length A B C

14’ 169-1/2” 103” 66-1/2”

16’ 193-1/2” 115” 78-1/2”

*Weights shown are for base models without options and are estimates only.

 Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Popular Options

POPULAR OPTIONS

Category Description Details

COUPLERS 2-5/16” Stamped Coupler

COUPLERS 2-5/16” Forged Coupler

JACKS 2,000# Fold-Up Jack

JACKS 7,000# Drop-Leg Jack

BRAKES Electric Brakes on 2nd Axle

BRAKES Hydraulic Surge Brakes 1 Axle w/Balcrank Actuator

BRAKES Hydraulic Surge Brakes 2 Axles w/ Balcrank Actuator

TIRE/WHEEL Spare Tire Mount (Side)

TIRE/WHEEL Spare Tire (ST205/75R-15 LR-C)

TIRE/WHEEL Tire Upgrade (ST225/75R-15 LR-D)

TIRE/WHEEL Spare Tire Upgrade (ST225/75R-15 LR-D)

RAMPS 5′ Tall Rear Rampgate in Lieu of 4′ Tall Rear Rampgate

RAMPS 4’ Heavy Duty Integrated Rampgate w/Gas Shock Assist

RAMPS Gas Shock Assist Option for Rampgate

BODY 4’ Tall Expanded Metal Sides (14’)

BODY 4’ Tall Expanded Metal Sides (16’) Details

BODY 1/8” Diamond Plate Steel Floor (Per Square Foot)

CARGO CONTROL 3-Place Weed Trimmer Racks (Bolt On)

CARGO CONTROL Additional Tie Loops (Each)

CARGO CONTROL Additional Tie Down Pockets (Each)
