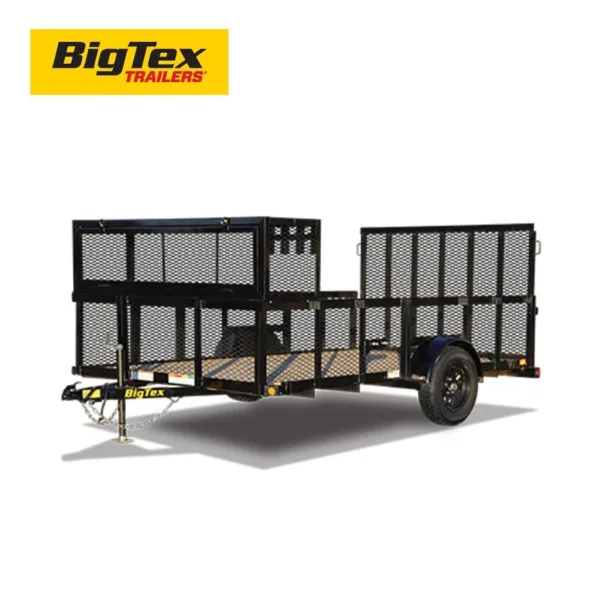

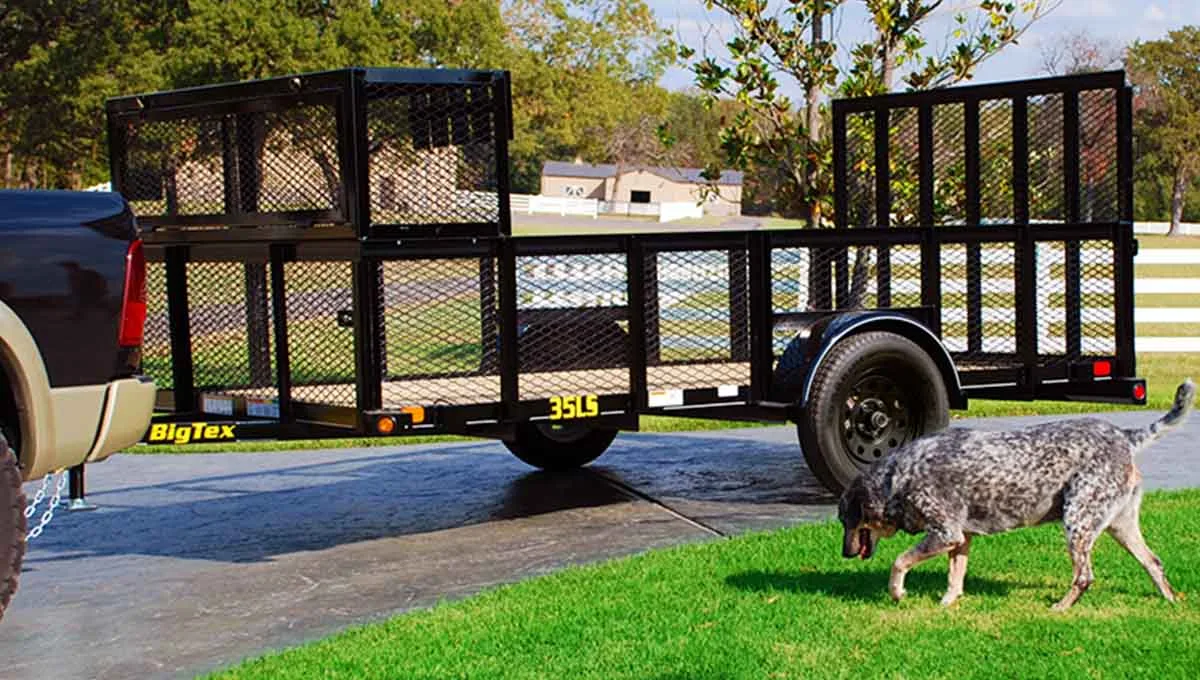

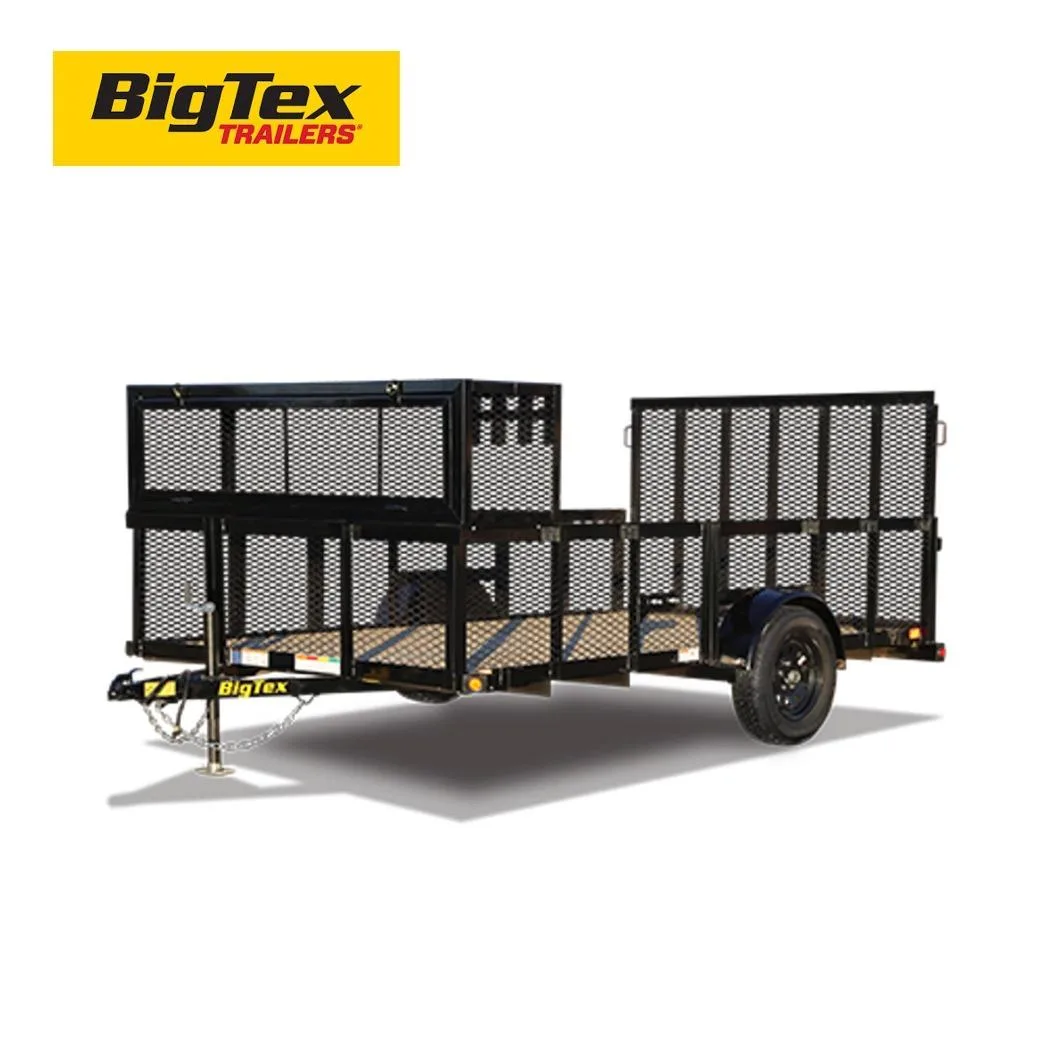

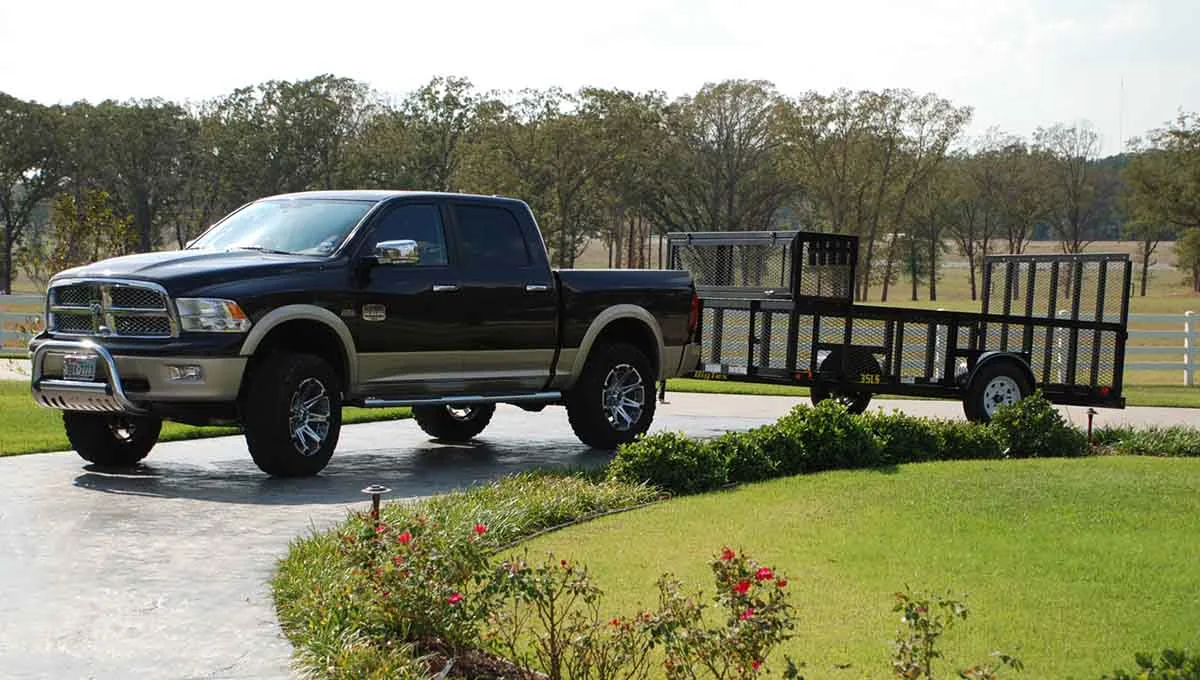

BIG TEX 35LS – 7 ft Wide – 2990 LB. GVWR Single Axle Landscape Trailer

Call for price

Brand: Big Tex Trailers

Description

BIG TEX 35LS – 7 ft Wide – 2990 LB. GVWR Single Axle Landscape Trailer

The 35LS Single Axle Landscape Trailer from Big Tex Trailers is the professional landscaperโ€™s dream trailer! Comes complete with tool holders, lockable landscape boxes and 2โ€ฒ expanded metal sides for the ultimate in cargo control.

Model(s): 35LS-10, 35LS-12, 35LS-14

Available Sizes: 7×10′, 7X12′, 7X14′

Call or Stop by your local Truck’n America today!ย

ย

Features

FEATURES

(4) Tie Down Loops Inside Bed

EZ Lube Hubs

Dexter Brand Axle

24โ€ Sides Enclosed with Expanded Metal

Grommet Mount Sealed Lighting

L.E.D. Lighting Package

Protected Wiring

Removable Sand Foot on Jack

Radial Tires NEW!

Brake Flanges on Axle for Easy Brake Addition

A-Frame Channel Tongue

(4) Tie Down Pockets on Outside of Frame

Lockable Landscape Box (24โ€ x 24โ€ x Width of Trailer)

(5) Tool Holders on Rear of Landscape Box

4โ€™ Tall Rear Rampgate

Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Specifications

SPECIFICATIONS

G.V.W.R. 2,995#

G.A.W.R. 2,995#

Coupler 2โ€ A-Frame

Safety Chains 1/4โ€ Grd. 30 w/Safety Latch Hook (2 each)

Jack 2,000# Top Wind (Bolted On)

Tongue 3โ€ Channel

Top Rail 3โ€ x 2โ€ x 3/16โ€ Angle

Frame 3โ€ x 2โ€ x 3/16โ€ Angle

Crossmembers 3โ€ x 2โ€ x 3/16โ€ Angle

Sides 24โ€ณ Sides Enclosed w/Expanded Metal

Fenders 9โ€ x 32โ€ Rolled Formed w/Back

Axle 3,500# EZ Lube w/Brake Flanges

Suspension Multi-Leaf Spring

Tire ST205/75R-15 Load Range C

Wheel 15โ€ณ x 5; White Spoke, 5 on 5 Bolt Pattern

Floor 2โ€ณ Treated Pine or Douglas Fir*

Lights LED D.O.T. Stop, Tail, Turn, & Clearance

Elec. Plug 4-Way Flat w/Loom

Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish

Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

*Douglas Fir Available from Caldwell, ID Facility Only

30LS line drawing

ย Model# Weight Description

35LS-10 1,300# 83โ€ณ x 10โ€ฒ Single Axle Landscape Trailer

35LS-12 1,510# 83โ€ณ x 12โ€ฒ Single Axle Landscape Trailer

35LS-14 1,720# 83โ€ณ x 14โ€ฒ Single Axle Landscape Trailer

Dimensions

Length A B C

10โ€™ 121-1/2โ€ 73โ€ 48-1/2โ€

12โ€™ 145-1/2โ€ 85โ€ 60-1/2โ€

14โ€™ 169-1/2โ€ 97โ€ 72-1/2โ€

*Weights shown are for base models without options and are estimates only.

ย Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Popular Options

POPULAR OPTIONS

COUPLERS 2″ Forged Coupler

BRAKES Electric Brakes w/ Complete Brake-Away Kit

JACKS 2,000# Fold-Up Jack

JACKS Set Back Jack

TIRE/WHEEL Spare Tire Mount (Side)

TIRE/WHEEL Spare Tire & Wheel (ST205/75R-15 LR-C)

RAMPS 5′ Tall Rear Rampgate

RAMPS Gas Shock Assist Option for Rampgate

BODY 48″ Tall Expanded Metal Sides (30LS-10) Details

BODY 48″ Tall Expanded Metal Sides (35LS-10) Details

BODY 48″ Tall Expanded Metal Sides (35LS-12) Details

BODY 48″ Tall Expanded Metal Sides (35LS-14) Details

CARGO CONTROL Additional Tie Down Pockets (Each)

CARGO CONTROL Additional Tie Loops (Each)

CARGO CONTROL 3-Place Weed Trimmer Racks (Bolt On)
