BIG TEX 10TL – 7 ft Wide 9990 LB. GVWR Pro Series Tilt LoPro

Call for price

Brand: Big Tex Trailers

Description

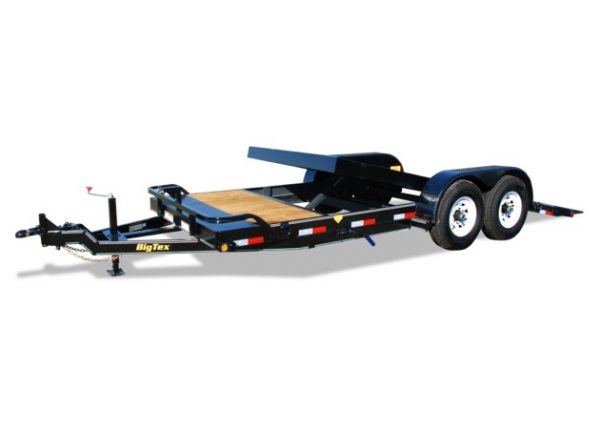

BIG TEX 10TL – 7 ft Wide 9990 LB. GVWR Pro Series Tilt LoPro

The 10TL from Big Tex Trailers is a stationary platform tilt deck trailer that has a 4’ stationary deck on the front. This unit, similar to the 10FT, is designed to haul medium duty, low profile equipment.

Model(s): 10TL-20

Available Sizes: 7×20′

Call or Stop by your local Truck’n America today!

Features

FEATURES

Rubrail and Tie Down Pockets Along Sides

Forged Adjustable 2-5/16” Coupler

Fold Back/Wrap Tongue w/ Raised Coupler

Set-Back, 7,000# Drop Leg Jack

2” Tubular Stop Rail

EZ Lube Hubs

Dexter Brand Axles

Nev-R-Adjust Electric Brakes on All Hubs

Cambered 4” Drop Axles

Complete Break-A-Way System w/Charger

Removable Tear Drop Style Fenders

Stationary Front Deck for Added Versatility

Unique Two Piece Main Frame

102” Wide Overall, 83” Width Between Fenders

Tilt Platform is 75” Wide

Hydraulic Dampening System

1/4” Diamond Plate Knife Edge on Rear

Grommet Mount Sealed Lighting

L.E.D. Lighting Package

Sealed Modular Wiring Harness

Spare Tire Mount (Front)

Radial Tires NEW!

Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Specifications

SPECIFICATIONS

G.V.W.R. 9,990#

G.A.W.R. (Ea. Axle) 5,080#

Coupler Adjustable Forged 2-5/16”

Safety Chains 1/4” Grd. 70 w/Safety Latch Hook (2 each)

Jack 7,000# Drop Leg (Bolted On)

Tongue 5” Channel Fold Back/Wrap

Front Stop Rail 2″ Tubing

Frame 6” Channel

Crossmembers 3” Channel, 3” Sq. Tube

Uprights None

Fenders 9” x 72” Teardrop w/Back (Bolted On)

Axles (2) 5,200# , 4” Drop EZ Lube w/Electric Brakes

Suspension Multi-Leaf Spring w/Equalizer

Tire ST225/75 R-15 Load Range D

Wheel 15″ x 6″; White Spoke 6 Bolt

Floor 2″ Treated Pine or Douglas Fir*

Lights LED D.O.T. Stop, Tail, Turn, & Clearance

Elec. Plug 7-Way RV

Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish

Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

*Douglas Fir Available from Caldwell, ID Facility Only

10TL line drawing

Model# Weight Description

10TL-20 3,150# 83” x 20’ (16’ + 4’) Pro Series Tilt Bed Equipment Trailer

Dimensions

Length A B C D

20’ 249-1/2” 130-1/2” 119” 192”

Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Popular Options

POPULAR OPTIONS

Category Description

COUPLERS Adjustable Pintle in Channel in Lieu of Coupler

JACKS 12,000# Drop Leg Jack – Top Wind

JACKS 12,000# Drop Leg Jack – Side Wind Against Bed

BRAKES Hydraulic Surge Brakes 2 Axles w/Adjustable Demco Actuator

TIRE/WHEEL Spare Tire (ST225/75 R-15 LR-D)

TIRE/WHEEL Tire Upgrade (ST235/80 R-16 LR-E)

TIRE/WHEEL Spare Tire Upgrade (ST235/80 R-16 LR-E)

BODY 1/8” Diamond Plate Steel Floor (Per Square Foot)

CARGO CONTROL Recessed D-Ring in Floor (Steel Floor Only)

CARGO CONTROL B40 5/8″ D-Ring (Each)
