BIG TEX 14GN – 8.5 ft Wide 15900 LB. GVWR

Call for price

Brand: Big Tex Trailers

Description

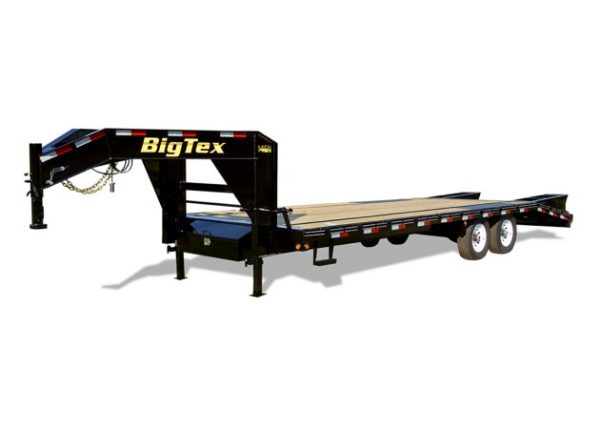

BIG TEX 14GN – 8.5 ft Wide 15900 LB. GVWR

The 14GN from Big Tex Trailers is our medium duty, single wheel gooseneck. This models combines many of the Big Tex unique features including low profile decks, LED lights, treated floor, dual jacks, and adjustable coupler.

Model(s): 14GN20+5, 14GN22+5, 14GN25+5, 14GN26+5, 14GN28+5

Available Sizes:ย 8.5X20+5, 8.5X22+5, 8.5X25+5, 8.5X26+5, 8.5X28+5

Call or Stop by your local Truck’n America today!ย

ย

Features

FEATURES

2-5/16โ€ Ball Adjustable Pipe Coupler

Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle

102โ€ Overall Width

Low Profile Bed, Pierced- Beam Frame

Lockable Toolbox Between GN Uprights

(2) Side Bed Steps & Handles

3/8โ€ Heavy Duty Rub Rail

Tie Down Pockets Along Sides, 24โ€ On Center

1-1/4โ€ Pipe Chain Spools Between Tie Down Pockets

EZ Lube Hubs

Dexter Brand Axles

Nev-R-Adjust Electric Brakes on All Hubs

Cambered Axles

Grommet Mount Sealed Lighting

L.E.D. Lighting Package

Modular Sealed Wiring Harness

Spare Tire Mount (Top of Neck)

5โ€™ Dovetail w/ 5โ€™ Double Hinged Spring Assist Flip-Over Ramps

Complete Break-A-Way System w/Charger

Radial Tires

Spare Tire & Wheel- Standard Equipped NEW!

Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Specifications

SPECIFICATIONS

G.V.W.R. 15,900#

G.A.W.R. (Ea. Axle) 7,000#

Coupler 2-5/16โ€ Ball Adjustable Pipe

Safety Chains 3/8โ€ Grd. 70 w/Safety Latch Hook (2 each)

Jack Dual 12,000# Drop Leg Side Wind (Bolted On)

Neck 12โ€ I-Beam

Top Rail None

Frame 12โ€ I-Beam

Crossmembers 3โ€ Channel

Side Rail 5โ€ Channel w/Rub Rail, Tie Down Pockets on 24โ€ Centers, and Chain Spools

Axles (2) 7,000# EZ Lube w/Electric Brakes

Suspension Multi-Leaf Slipper Spring w/Equalizer

Tire ST235/80 R-16 Load Range E

Wheel 16โ€ณ x 6โ€ณ; Heavy White Mod 8 Bolt

Floor 2โ€ณ Treated Pine or Douglas Fir*

Lights LED D.O.T. Stop, Tail, Turn, & Clearance

Elec. Plug 7-Way RV

Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish

Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

*Douglas Fir Available from Caldwell, ID Facility Only

ย Model# Weight Description

14GN-20+5 4,780# 102โ€ x 20โ€™ + 5โ€™ Single Wheel Tandem Axle Gooseneck

14GN-22+5 4,980# 102โ€ x 22โ€™ + 5โ€™ Single Wheel Tandem Axle Gooseneck

14GN-25+5 5,280# 102โ€ x 24โ€™ + 5โ€™ Single Wheel Tandem Axle Gooseneck

14GN-26+5 5,380# 102โ€ x 26โ€™ + 5โ€™ Single Wheel Tandem Axle Gooseneck

14GN-28+5 5,580# 102โ€ x 28โ€™ + 5โ€™ Single Wheel Tandem Axle Gooseneck

Dimensions w/Dovetail

Length A B C

20 + 5 240โ€ 186โ€ 54โ€

22 + 5 264โ€ 210โ€ 54โ€

25 + 5 300โ€ 240โ€ 60โ€

26 + 5 312โ€ 248โ€ 64โ€

28 + 5 336โ€ 264โ€ 72โ€

*Weights shown are for base models without options and are estimates only.

ย Truck’n America strives to ensure the accuracy of information presented on this site. However there may be some variation in the information presented here and the actual trailer specifications. Specifications and Options subject to change without notice.

Popular Options

POPULAR OPTIONS

Category Description Details

COUPLERS 30,000# Square Adjustable Screw Type Coupler

JACKS Dual 2-Speed Landing Gear

JACKS Dual Electric Over Hydraulic Jacks

BRAKES Electric Over Hydraulic Brakes (Drum)

AXLES Torsion Axles in Lieu of Spring Axles

TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G)

TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G)

RAMPS (2) 5′ MEGA Ramps Details

RAMPS 5โ€™ Center Pop-Up Dovetail w/ (2) 5โ€™ Flip-Over Ramps Details

RAMPS (3) 5′ Flip-Over Ramps w/Diamond Plate on Bottom Details

RAMPS No Dovetail Option (Delete’s Dovetail & Ramps) Details

RAMPS 8′ Rear Slide-In Ramps (Straight Deck Only)

BODY Removable Deck on the Neck- Bolt On (8′ W x 6′ L) Details

CARGO CONTROL Low Profile Tool Box 15โ€ x 15โ€ x 36โ€ (Side Mount)

CARGO CONTROL Sliding Winch Track (Per 6′ Section) Details

CARGO CONTROL 4″ Sliding Winch (Each) Details

CARGO CONTROL 4″ Weld-On Winch (Each)

CARGO CONTROL 4″ x 30′ Strap (Each)

CARGO CONTROL B 40 5/8โ€ D-Ring (Each)
