Meyer Diamond Edge – Professional Snow Plows available at Truck’n America Waldorf, Laurel and Finksburg, Maryland as well as in Leesburg and Fredericksburg, Virginia.

Call for price

Brand: Meyer Products

SKU: mey-diamondedge Category:

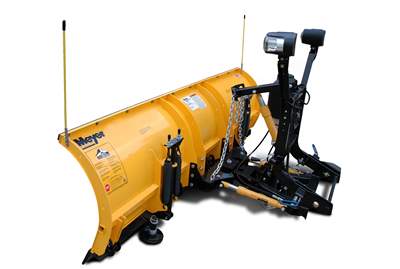

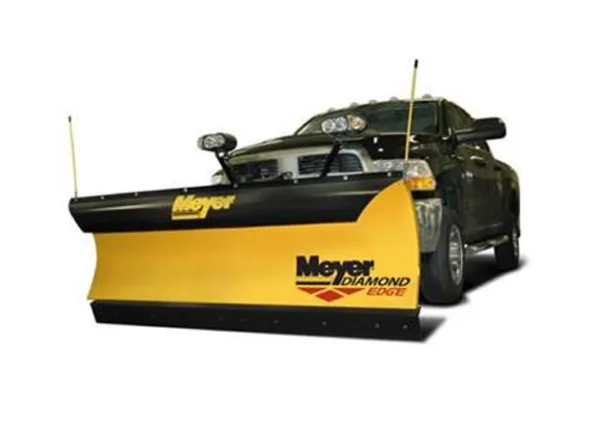

Meyer Diamond Edge – Professional Snow Plow – 7′.5″, 8′, 8′.5″, 9′ – Steel

Diamond Edge

Built for contractors who prefer a bottom-trip plow, the Meyer Diamond Edge features the tallest and most aggressive bottom-trip, contractor-class moldboard on the market. Boasting a 32-inch height and 70-degree attack angle, this plow attaches to 3/4-ton and larger trucks and produces better overall clearing performance in less time.

Heavy-duty Plows That Don’t Lie Down On The Job

Built for contractors who don’t have a minute to waste, the Meyer Diamond Edge plow features the tallest and most aggressive bottom-trip, contractor-class moldboard on the market. Boasting a 32″ height and 70-degree attack angle, this plow attaches to 3/4-ton and larger trucks and produces better overall clearing performance in less time. The Diamond Edge is available with your choice of two mounting systems: Standard Operating System that offers industry-leading ground clearance and the EZ-Mount Plus that offers premium features such as self-diagnostics and hands-free plowing.



Not All Yellow Plows Are Alike…

With the tallest and most aggressive moldboard, the Meyer Diamond Edge moves more snow than competitive contractor plows.  The bottom-trip feature keeps the moldboard upright and performing, while the lower portion gives way when obstacles are struck, so you can keep plowing without losing the entire load. Plus the trip-edge absorbs and dissipates the shock caused by obstructions saving wear and tear on the driver, truck and plow.

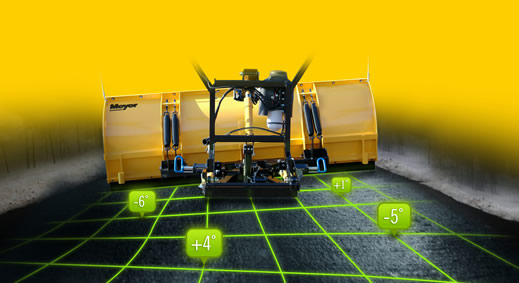

Introducing Meyer’s new, Ground Tracking Technology™ (GTT)

Optional for Diamond Edge with an EZ-Mount Plus mount, GTT enables the plow to pivot up to 12 degrees in either direction, allowing it to automatically follow the contour of the road. GTT levels the moldboard automatically when it’s raised and moved right or left, so the plow remains level during transport.  It also allows the plow to mount more easily on uneven surfaces because the mount stays level even if the moldboard is not. See Ground Tracking Technology in Action.

Ground Tracking Technology

Highway Plow-inspired Black Iron

Behind the moldboard is totally redesigned “black iron” consisting of robust, tubular steel A-frame and pivot bar. Highway plow-inspired, this simplified design creates a stronger plow at key pressure zones and more evenly distributes the load. The pressure zones are further enhanced by three, reinforced points-of-contact and a tubular bar along the entire back of the moldboard for increased torsional strength.

Highway Plow-inspired Black Iron

Dura-Slick Paint with Teflon®

All Meyer carbon steel moldboards are painted with Meyer Dura-Slick™ Paint. This automotive-style paint with Teflon® is baked on to the steel for durability and better snow-rolling action. It’s the reason why Meyer plows throw snow farther and move it faster than the competition.

Dura-Slick Paint with Teflon

Better Lights for Better Sight

It’s hard to plow what you can’t see, so all Meyer snow plows come with dual halogen Nite Saber® lights. They are fully adjustable and iso-mounted to resist vibration. The Nite Saber lights feature easy-to-replace dual halogen bulbs and wrap-around turn signals.

Feild Adjustable Trip Springs

While out plowing, contractors often need to make adjustments to their plow, and they dont want to go back to the shop to do it. That is why Meyer makes their plows with field adjustable trip springs. This allows more time to plow and less time back at the shop.


In the snow plowing business, downtime is not an option. That’s why the Diamond Edge is built using Reliable Over-time Construction (ROC)… the detailed things we do to make our plows more rugged and reliable. ROC is the result of manufacturing improvements and state-of-the-art technology combined with stringent quality control procedures.


Slot and Tab Construction

Meyer couldn’t offer the industry’s best warranty on our plows if we didn’t build them using slot and tab construction. This method of construction makes for a stronger, more precise fitting plow. Laser cut steel components are assembled using robotic welders that never tire and never make a mistake. It’s why every plow comes off the line ready to provide years of trouble-free service.

Slot and Tab Construction

Continuously Welded Ribs

Meyer plows are continuously welded on the outside ribs. This Meyer exclusive not only gives our plows a more rugged look, but more importantly, it increases their strength and performance so they can handle anything Mother Nature sends their way.

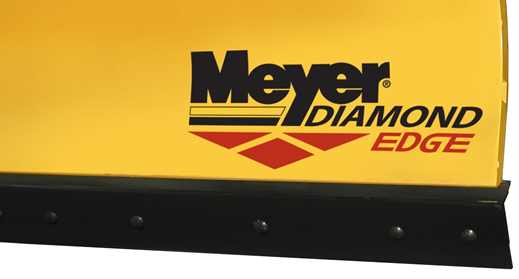

Reversible Cutting Edge is Standard Equipment

All Diamond Edge plows come standard with a reversible center hole punched cutting edge for longer moldboard wear life.

Reversible Cutting Edge

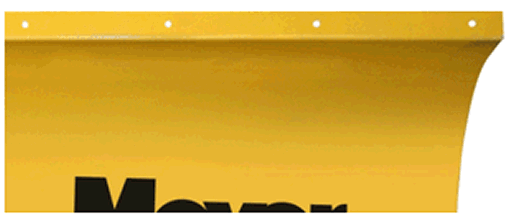

Pre-drilled Deflector Holes

Meyer Diamond Edge moldboards are manufactured with pre-drilled holes, which makes it easy to add a snow deflector. This means you save time when adding this important safety feature that prevents snow from impairing your view through the windshield. Since they are pre-drilled at the factory, the holes are sealed with Dura-Slick paint to help prevent rust.

Pre-drilled Deflector Holes

5-Year America’s Best Warranty

Meyer is proud to offer a full five-year warranty on complete plow systems with an online registration.  The competition can’t beat that.

5 Year Warrenty

Ease of Use

Choice of Two Operating Systems That Make Your Job Easier

Meyer is pleased to offer two operating systems: The all-new Standard Operating System™ and the EZ-Mount Plus™ system. The Standard Operating System* has been designed to provide industry-leading ground clearance and is equipped with an adjustable drop speed and Nite Saber III dual-halogen lights. The EZ-Mount Plus system offers premium features such as self-diagnostics and hands-free plowing. Both conveniently attach or detach in under a minute and leave the vehicle with an off-the-assembly line appearance when not attached.

Ease of Use


Industry-Leading Ground Clearance

The Standard Operating System offers up to 9” of ground clearance for improved stacking and transport height. You’ll carry your plow high and be less prone to bottoming out.

Durable And Reliable System Featuring Nite Saber III Lights

The Standard Operating System’s lift frame and light bar offer greater rigidity and stability. Plus the tubular-steel a-frame offers greater durability. The Standard Operating System features Nite Saber III lights which are fully adjustable and iso-mounted to resist vibration. They also feature weathertight three seal plugs, easy-to-replace dual halogen bulbs, wrap-around turn signals and an internal bracket for durability.

Encased Power Unit With Adjustable Drop Speed

The Standard Operating System has a streamlined appearance with an encased power unit and patented cable management system for reliable service. It also features an adjustable drop speed for varying plowing conditions and preferences.

Easy-To-Use Controller

The Standard Operating System is controlled using an easy-to-use touch pad controller featuring a high-beam indicator light. Move the plow up, down, left, right quickly and easily at the touch of a button.

EZ-Mount Plus System

Hands-Free Plowing – A Meyer Exclusive

Meyer knows controller preferences vary by driver, that’s why we offer two options for Meyer V plows:  EZ-1 deluxe pistol grip or joystick.  Both controllers feature diagnostics and a Hands-Free Plowing (HFP) mode. When activated, HFP uses the shift lever to control the up/down movement of the blade. The EZ-1 pistol grip controller also features double-click technology.  Simply double-click a button, and the moldboard will automatically move in that direction without having to keep your finger on the button.
Hands-Free Plowing

One-Piece Plug (Patented)

Unlike competitors who have up to three plugs, the Meyer EZ-Mount Plus system comes with a one-piece patented plug to connect/disconnect the plow from the vehicle. No more fumbling in the middle of the night trying to figure out which plug goes where. The one-piece plug gets you back in the cab faster and easier.
One-Piece Plug

System Diagnostics

When you’re out plowing, issues arise. Meyer makes it easy to get you back on the road using our system diagnostics found on the back of our pistol grip controllers. Just match the controller’s flashing light sequence with the chart on the back of the controller to isolate the issue. Not only does this reduce your downtime, it gets you back doing what you do best – plowing snow.
System Diagnostics

Reliable and Responsive Operation

The driving force behind every Meyer snow plow is a reliable and responsive hydraulic system. The EZ-mount plus triple-layered sealed coils and connectors virtually eliminate corrosion and moisture often found in electrical and mechanical systems. And unlike competitive systems, all Meyer hydraulic systems ship standard with custom-molded covers to help protect the units from road salt and grime.
Reliable and Responsive Operation

Fleet Management

EZ-Mount Plus mounting systems are fleet-friendly because the moldboards and controllers are interchangeable. Attachment and detachment take only moments for unlimited vehicle transformations.



Get to know the Diamond Edge plow.

Quick Facts:

  • Type: Bottom-Trip

  • Vehicle: 3/4-ton trucks and larger

  • Construction: Steel 7’6” – 9’

  • Meyer DE-7.5

    Blade Model #:Meyer DE-7.5 Blade Type: Moldboard Length:7′ 6″ Moldboard Height:31.5″
    Moldboard Gauge:12 ga Vertical Ribs:6 Plow Trip Springs:4 extension Cutting Edge:1/2″ x 6″
    Avg Width at Full Angle:78″ Angling Rams:1-1/2″ x 10″ Weight Complete:805
  • Meyer DE-8.0

    Blade Model #:Meyer DE-8.0 Blade Type: Moldboard Length:8′ Moldboard Height:31.5″
    Moldboard Gauge:12 ga Vertical Ribs:6 Plow Trip Springs:4 extension Cutting Edge:1/2″ x 6″
    Avg Width at Full Angle:83″ Angling Rams:1-1/2″ x 10″ Weight Complete:840
  • Meyer DE-8.5

    Blade Model #:Meyer DE-8.5 Blade Type: Moldboard Length:8′ 6″ Moldboard Height:31.5″
    Moldboard Gauge:12 ga Vertical Ribs:6 Plow Trip Springs:4 extension Cutting Edge:1/2″ x 6″
    Avg Width at Full Angle:88″ Angling Rams:1-1/2″ x 10″ Weight Complete:870
  • Meyer DE-9.0

    Blade Model #:Meyer DE-9.0 Blade Type: Moldboard Length:9′ Moldboard Height:31.5″
    Moldboard Gauge:12 ga Vertical Ribs:6 Plow Trip Springs:4 extension Cutting Edge:1/2″ x 6″
    Avg Width at Full Angle:94″ Angling Rams:1-1/2″ x 10″ Weight Complete:890
